Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  2. Remove the seat cushion trim cover and pad. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT  .
  3. Remove the following components from the seat cushion frame:
    • The frame springs (1)
    • The frame suspension (2)
    • The plastic retainers (3)
  4. Remove the seat cushion frame from the vehicle.

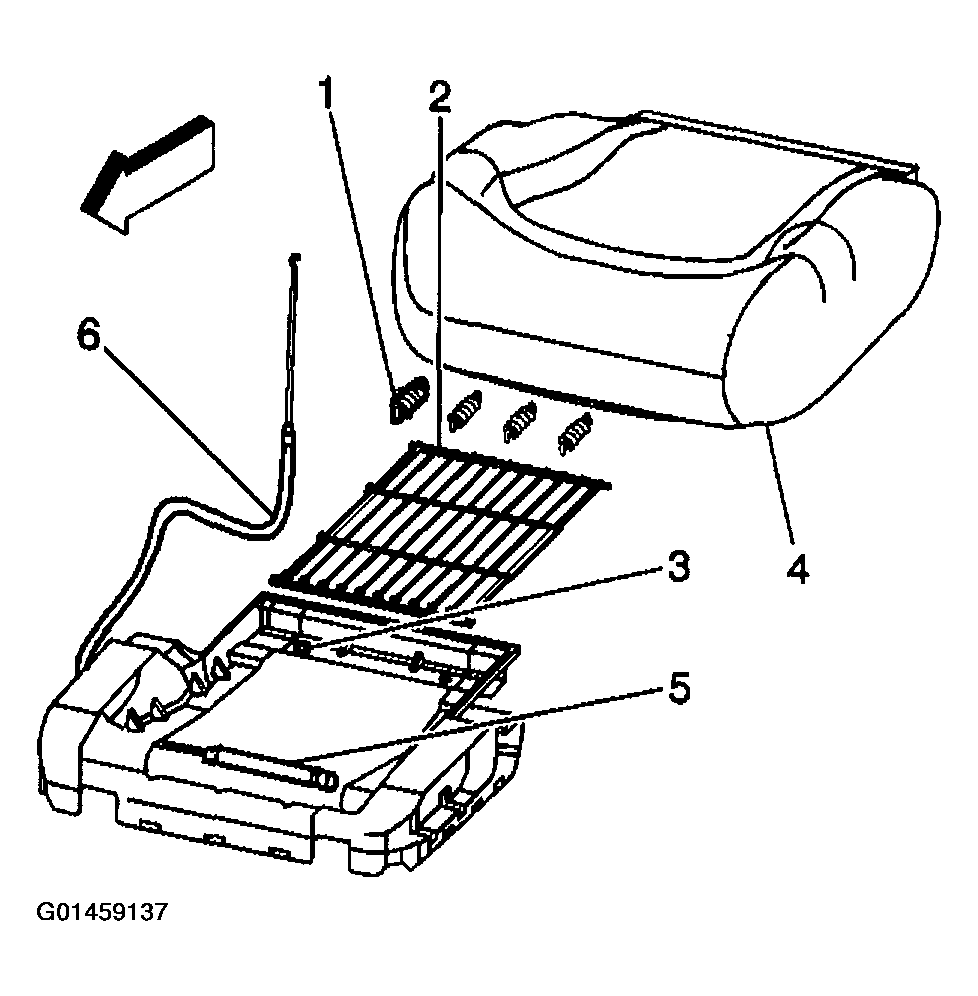

    Fig 1: Removing Front Seat Cushion Frame
    G01459137Courtesy of GENERAL MOTORS CORP.
