Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following components to the seat cushion frame:
    • The plastic retainers (3)
    • The frame suspension (2)
    • The frame springs (1)
  2. Install the seat cushion trim cover and pad. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT  .
  3. Install the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  4. Re-zero the inflatable restraint passenger presence system. Refer to Passenger Presence System Rezeroing Procedure in SIR.

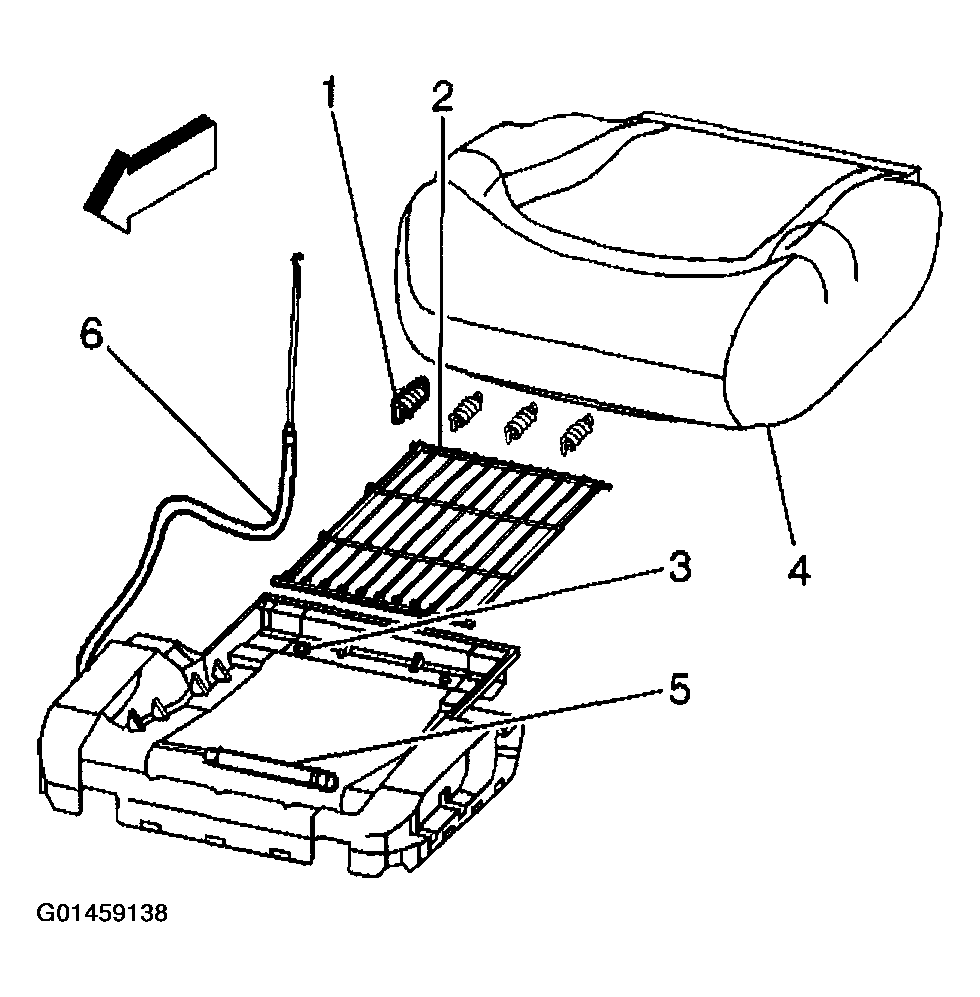

    Fig 1: Installing Front Seat Cushion Frame
    G01459138Courtesy of GENERAL MOTORS CORP.
