Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the recliner handle on the side shield.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screw retaining the recliner handle to the trim panel.

    Tighten

    1. Tighten the screws to 2 N.m (18 lb in).

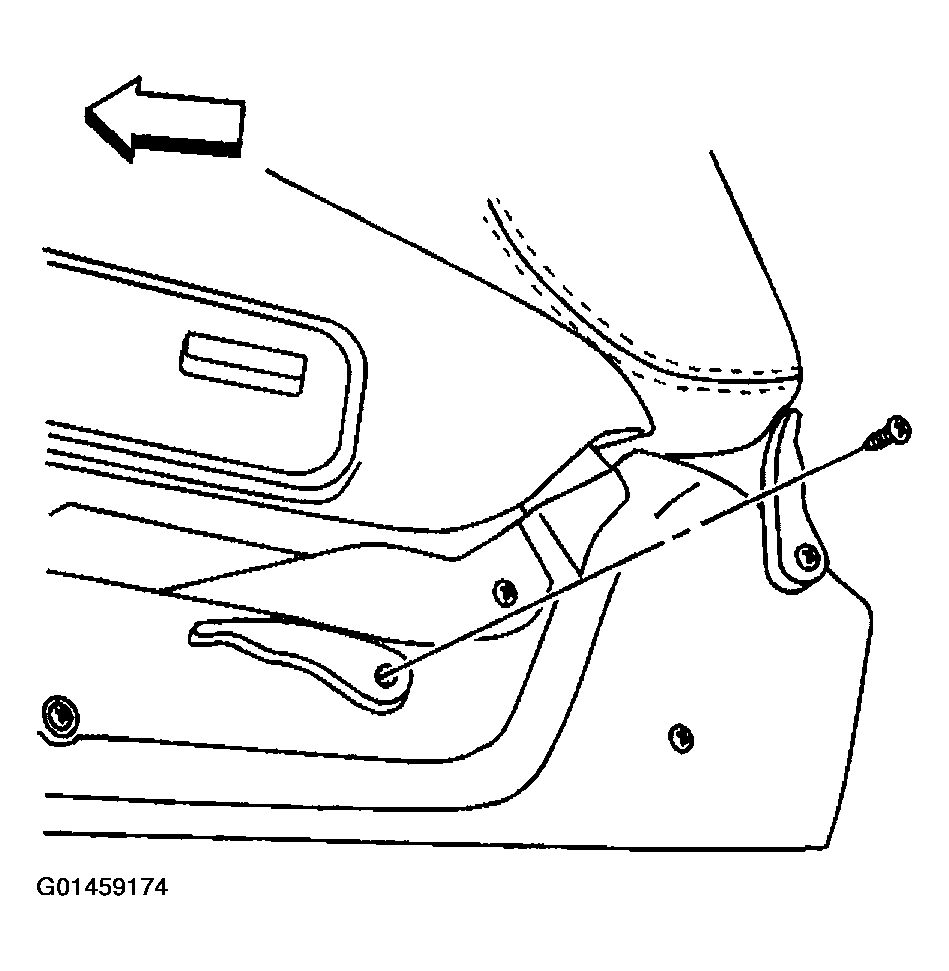

    Fig 1: Installing Screw Retaining Recliner Handle To Trim Panel
    G01459174Courtesy of GENERAL MOTORS CORP.
