Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt guide (1) to the latch assembly, if removed.
  2. Install the spacer (2) to the latch assembly, if removed.
    Fig 1: Installing Spacer To Latch Assembly
    G01459257Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back latch assembly to the seat frame.
  4. Attach the recliner cables to the folding mechanism.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the bolts (1, 2) that retain the latch assembly to the seat frame.

    Tighten

    1. Tighten the bolts to 45 Nm (33 lb ft).
  6. Install the screw (3) that retains the latch assembly to the seat frame.

    Tighten

    1. Tighten the screw to 25 N.m (18 lb ft).
  7. Install the seat back cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH)  .
  8. Install the armrest, if equipped. Refer to ARMREST REPLACEMENT - REAR SEAT (BUCKET)  or ARMREST REPLACEMENT - REAR SEAT (60/40 SPLIT)  .
  9. Install the rear seat to the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (60/40 SPLIT)  or SEAT REPLACEMENT - REAR NO. 1 (BUCKET)  .

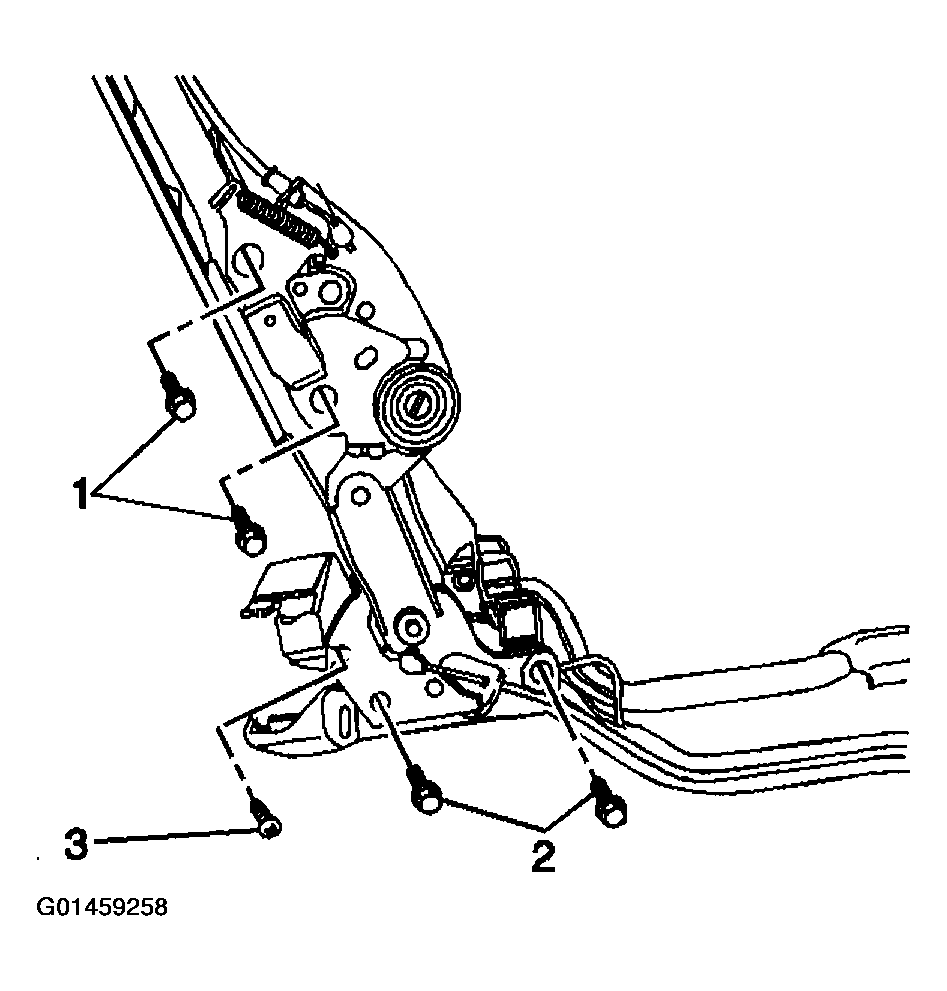

    Fig 2: Installing Bolts That Retain Latch Assembly To Seat Frame
    G01459258Courtesy of GENERAL MOTORS CORP.
