Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat back trim cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  3. Peel the seat back heater off the foam pad.
  4. Disconnect the seat back heater harness.

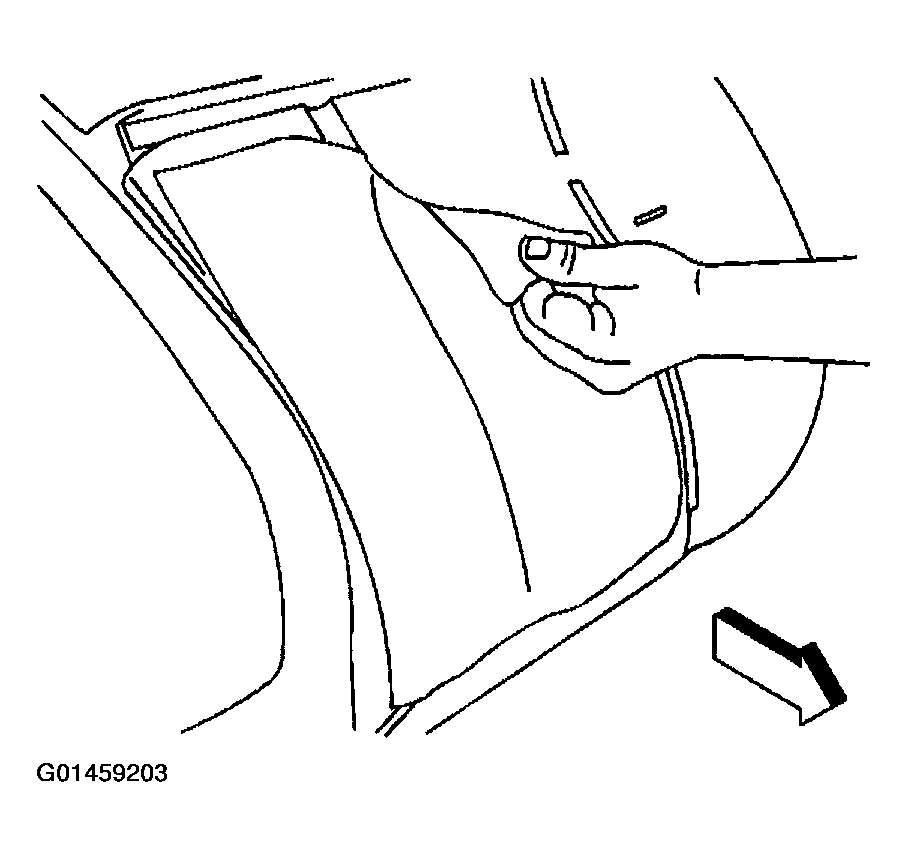

    Fig 1: Removing Seat Back Trim Cover
    G01459203Courtesy of GENERAL MOTORS CORP.
