Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the seat back heater harness.
  2. Install the seat back heater.
  3. Install the seat back trim cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  4. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

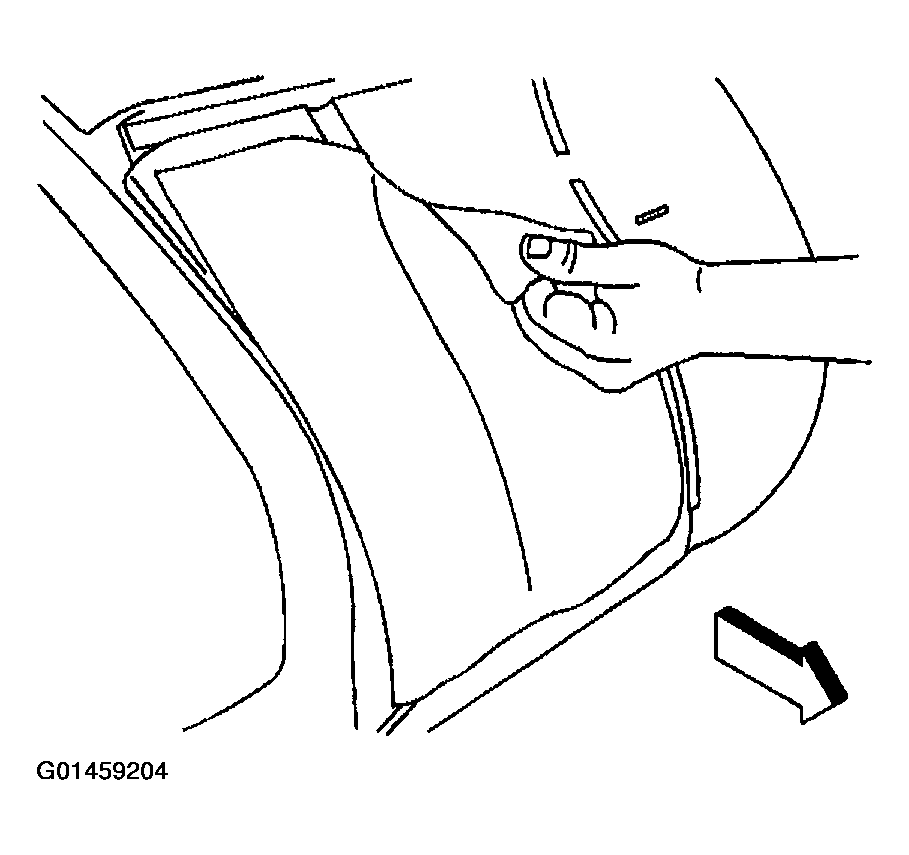

    Fig 1: Installing Seat Back Trim Cover
    G01459204Courtesy of GENERAL MOTORS CORP.
