Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH)  .
  2. Remove the bolts (1) that retain the seat back frame to the hinge assembly.
  3. Remove the seat back frame.

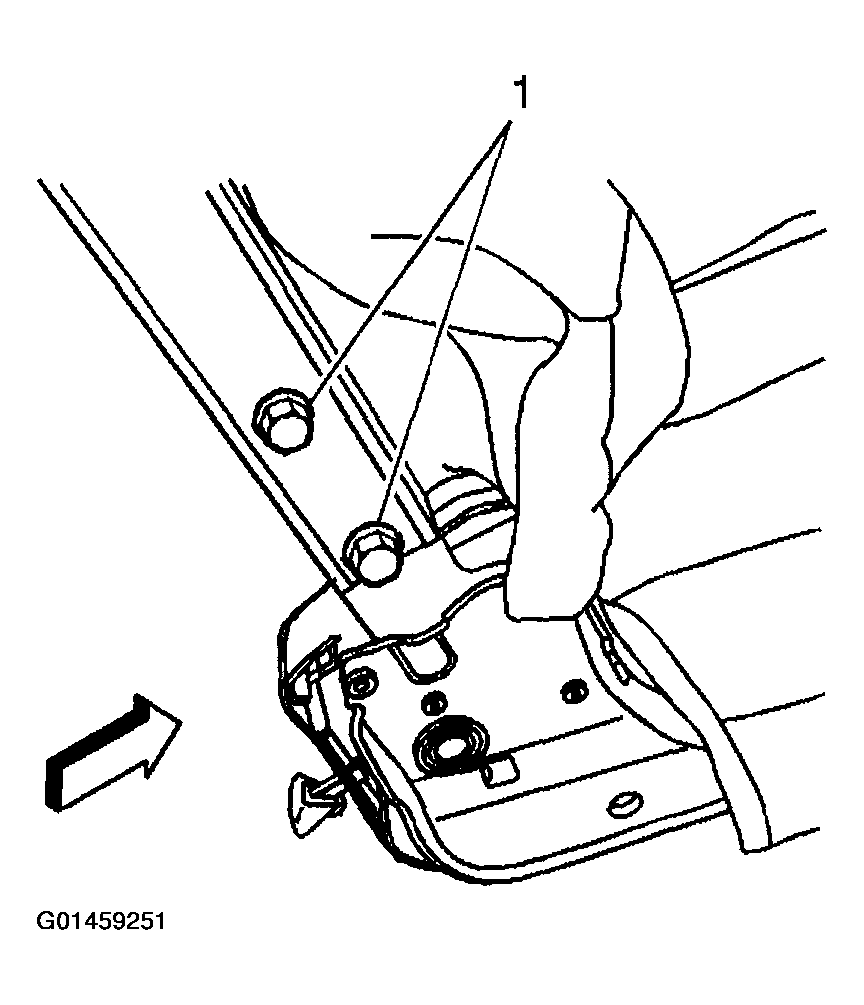

    Fig 1: Removing Bolts That Retain Seat Back Frame To Hinge Assembly
    G01459251Courtesy of GENERAL MOTORS CORP.
