Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat-back frame (4) to the seat cushion frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts which retain the seat-back frame to the seat cushion frame.

    Tighten

    1. Tighten to 35 Nm (26 lb ft).
  3. Install the seat-back cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH)  .
  4. Install the armrest to the seat back. Refer to ARMREST REPLACEMENT - REAR SEAT (BUCKET)  or ARMREST REPLACEMENT - REAR SEAT (60/40 SPLIT)  .
  5. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (60/40 SPLIT)  or SEAT REPLACEMENT - REAR NO. 1 (BUCKET)  , SEAT REPLACEMENT - REAR NO. 1 (BUCKET)  or SEAT REPLACEMENT - REAR NO. 2 - 50-50  .

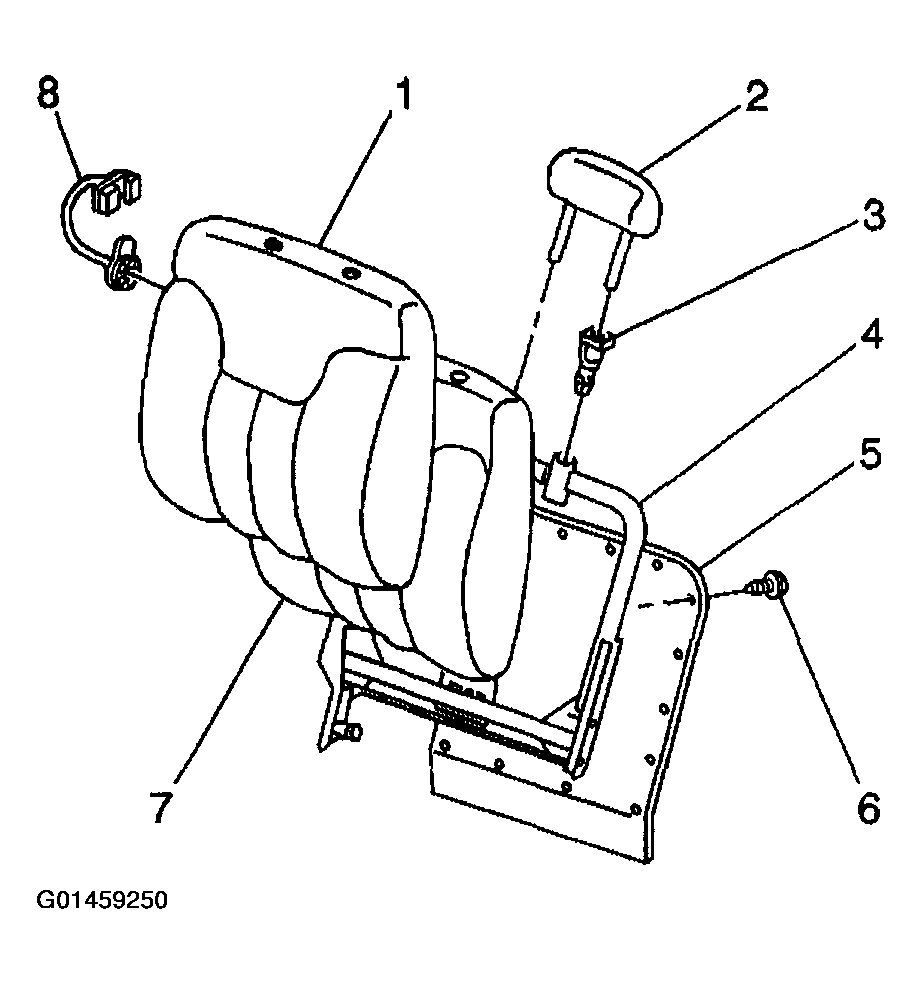

    Fig 1: Installing Seat Back Frame - Rear
    G01459250Courtesy of GENERAL MOTORS CORP.
