Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back cover and pad to the frame.
  2. Install the head restraint retainers.
  3. Install the plastic pushpin (1) into the side seat belt guide.
    Fig 1: Installing Plastic Pushpin Into Side Seat Belt Guide
    G01459245Courtesy of GENERAL MOTORS CORP.
  4. Connect the J-clips to the trim.
  5. Install the plastic seat belt guides (1).

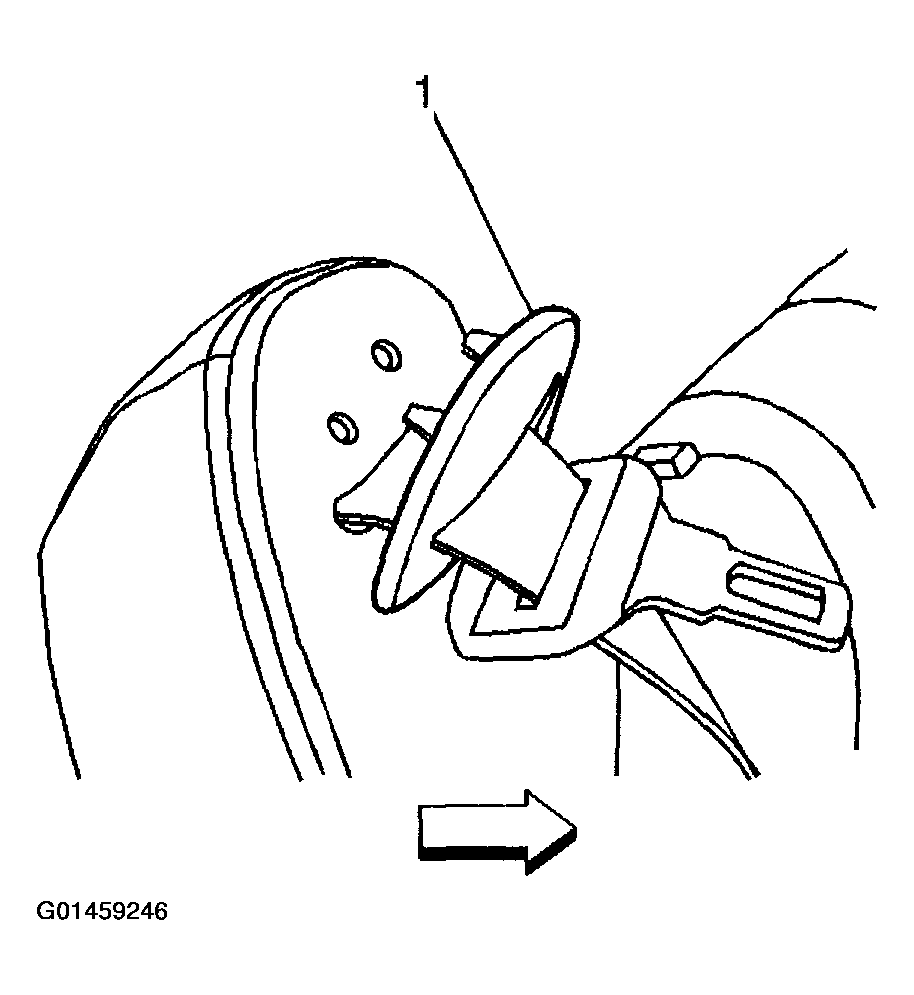

    Fig 2: Installing Plastic Seat Belt Guides
    G01459246Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the seat belt anchor bolt (1).

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb ft).

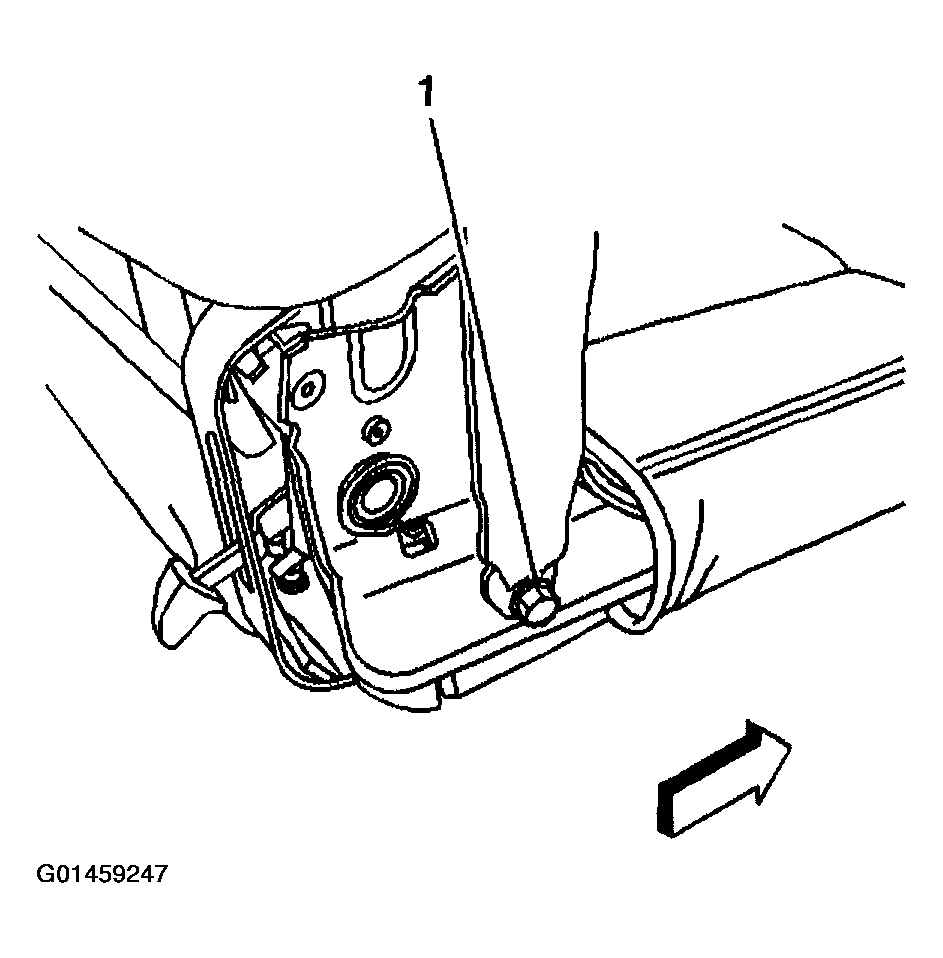

    Fig 3: Installing Seat Belt Anchor Bolt
    G01459247Courtesy of GENERAL MOTORS CORP.
  7. Install the side trim plate and screws (1).

    Tighten

    1. Tighten the screw to 2 N.m (18 lb in).
  8. Install the headrests. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC)  or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC)  or HEAD RESTRAINT REPLACEMENT (FOLDING)  .
  9. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
    Fig 4: Installing Side Trim Plate And Screws
    G01459248Courtesy of GENERAL MOTORS CORP.
