Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the foam pad to the frame.
  2. Install the seat belt tower.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts which retain the seat belt tower cover.

    Tighten

    1. Tighten the bolts to 9 N.m (17 lb in).

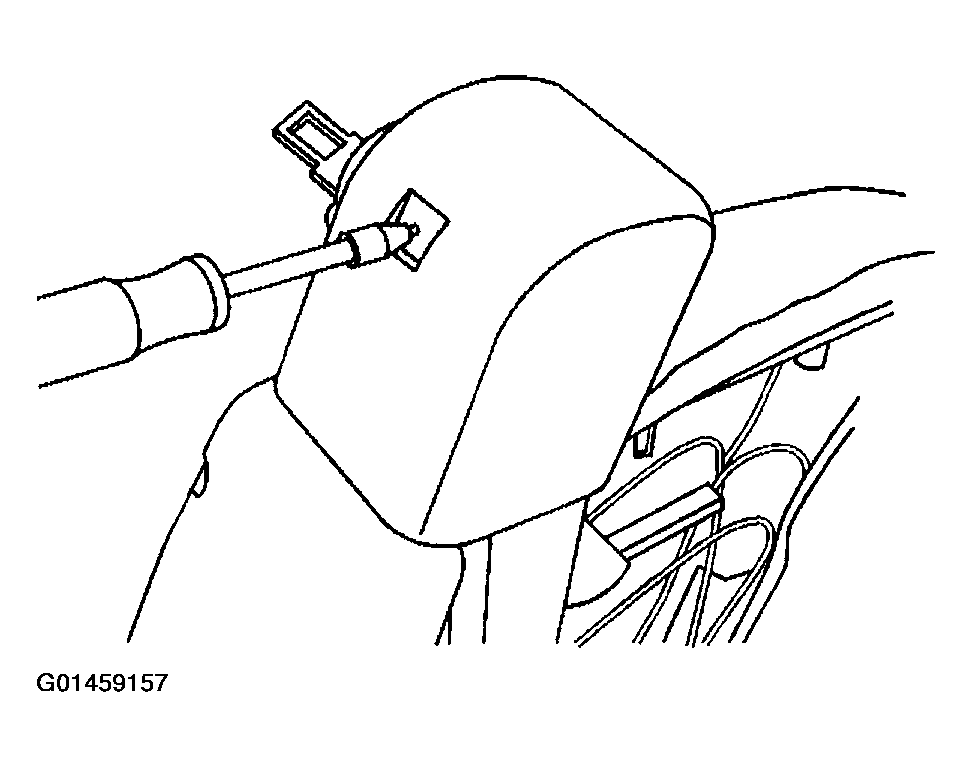

    Fig 1: Attaching Foam Pad To Frame
    G01459157Courtesy of GENERAL MOTORS CORP.
  4. Install the rear cardboard panel. Engage the panel fasteners.
  5. Install the seat back cover partially onto the top of the frame.
  6. Feed the seat belt and the seat belt bezel through the tower opening.
  7. Install the arm rest clip.
    Fig 2: Installing Arm Rest Clip
    G01459158Courtesy of GENERAL MOTORS CORP.
  8. Pull the rest of the cover down using a side-to-side motion.
  9. Install the armrests, if equipped. Refer to ARMREST REPLACEMENT - FRONT SEAT  .
  10. Install the head restraint retainers. Refer to HEAD RESTRAINT RETAINER REPLACEMENT - FRONT SEAT  .
  11. Fit the seat cover around the air bag cover.

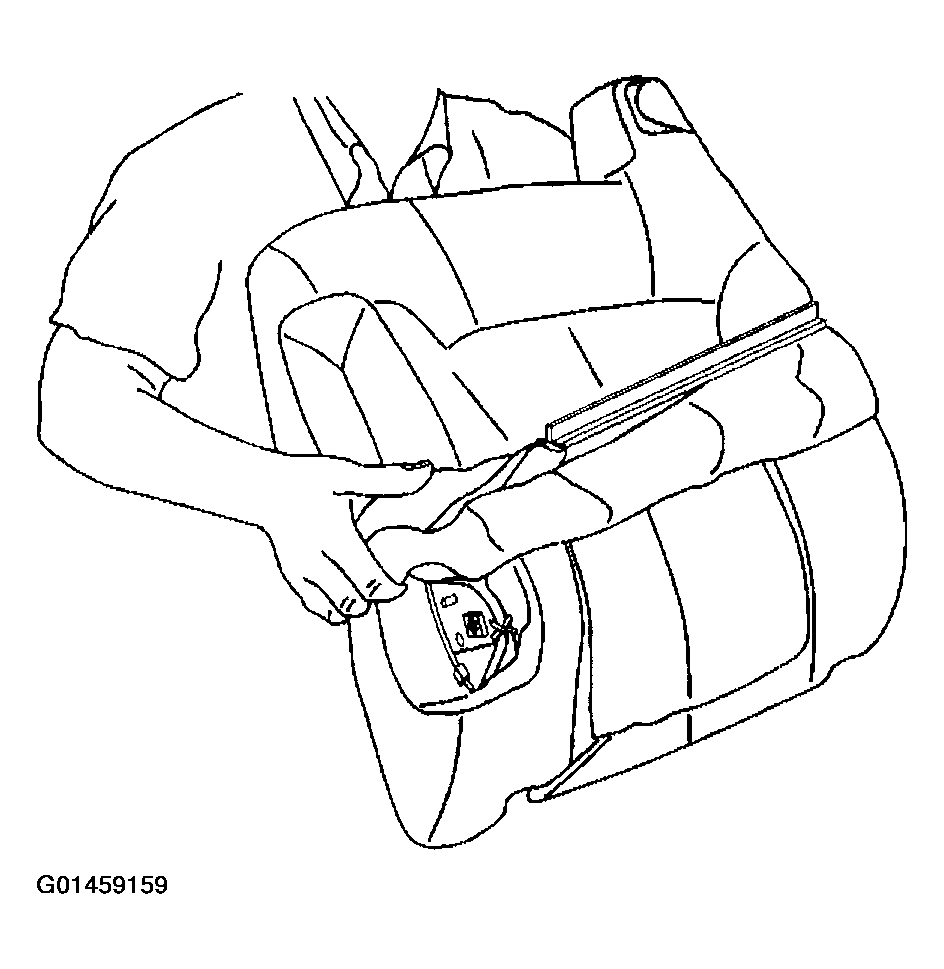

    Fig 3: Fitting Seat Cover Around Air Bag Cover
    G01459159Courtesy of GENERAL MOTORS CORP.
  12. Install the nut to the lower seat belt anchor.

    Tighten

    1. Tighten the nut to 53 N.m (39 lb ft).
  13. Install the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  14. Install the head restraints. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC)  or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC)  or HEAD RESTRAINT REPLACEMENT (FOLDING)  .
  15. Push on the seat cover. Ensure that the cover is retained by the Velcro® in the seat cushion.
  16. Connect the strip at the bottom of the seat.
  17. If equipped with side air bags, enable the air bag module. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9   in SIR.

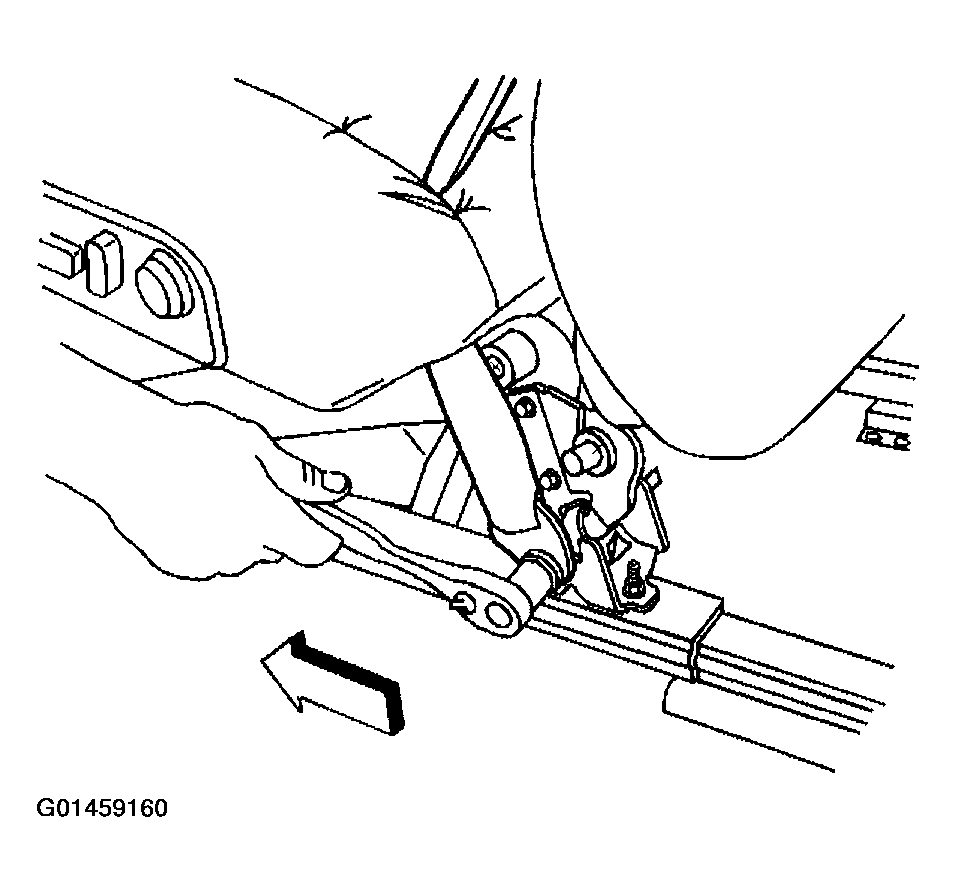

    Fig 4: Installing Nut To Lower Seat Belt Anchor
    G01459160Courtesy of GENERAL MOTORS CORP.
