Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Unsnap the front tabs, then the rear tabs of the track cover.
  3. Remove the track cover from the vehicle.

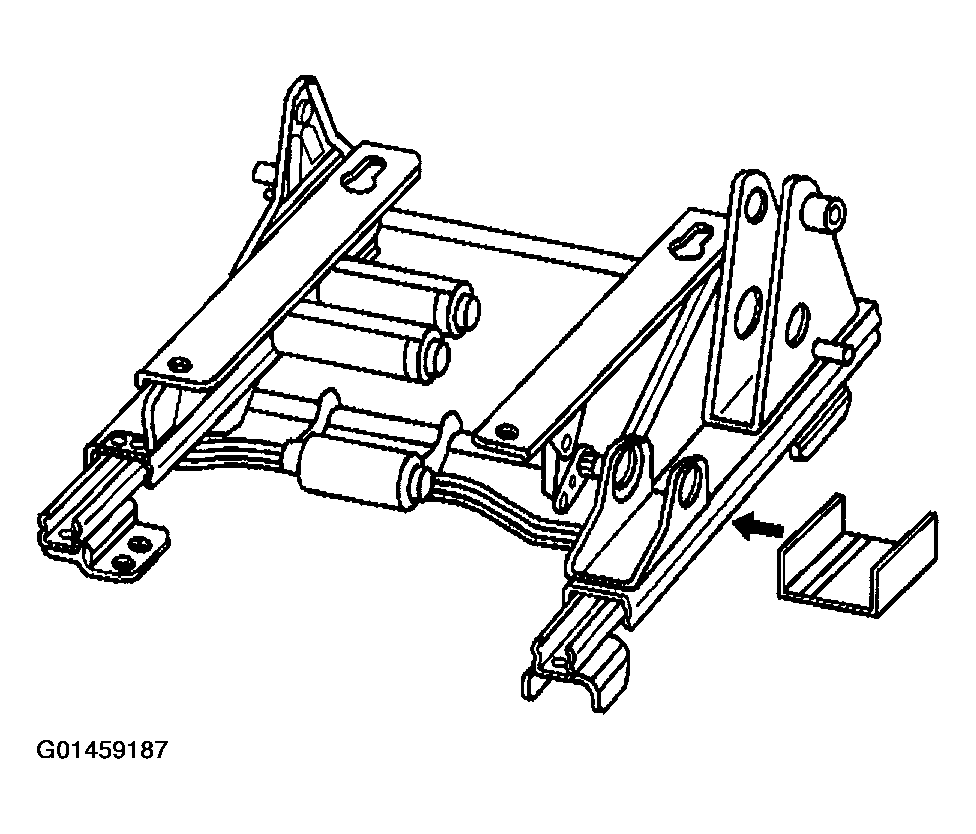

    Fig 1: Removing Track Cover From Vehicle
    G01459187Courtesy of GENERAL MOTORS CORP.
