Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  3. Remove the seat cushion frame from the seat adjuster. Refer to SEAT CUSHION FRAME REPLACEMENT - FRONT  .
  4. Remove the inboard seat belt buckle and nut (1). Disconnect the electrical connection (2).
  5. Remove the seat back frame from the seat adjuster. Refer to SEAT BACK FRAME REPLACEMENT - FRONT  .
  6. Remove the seat back hinge/recliner mechanism. Refer to SEAT BACK HINGE/RECLINER MECHANISM REPLACE - FRONT  .
  7. Remove the seat adjuster track cover. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT  .
  8. Remove the memory module, if equipped. Refer to MEMORY SEAT CONTROL MODULE REPLACEMENT  .

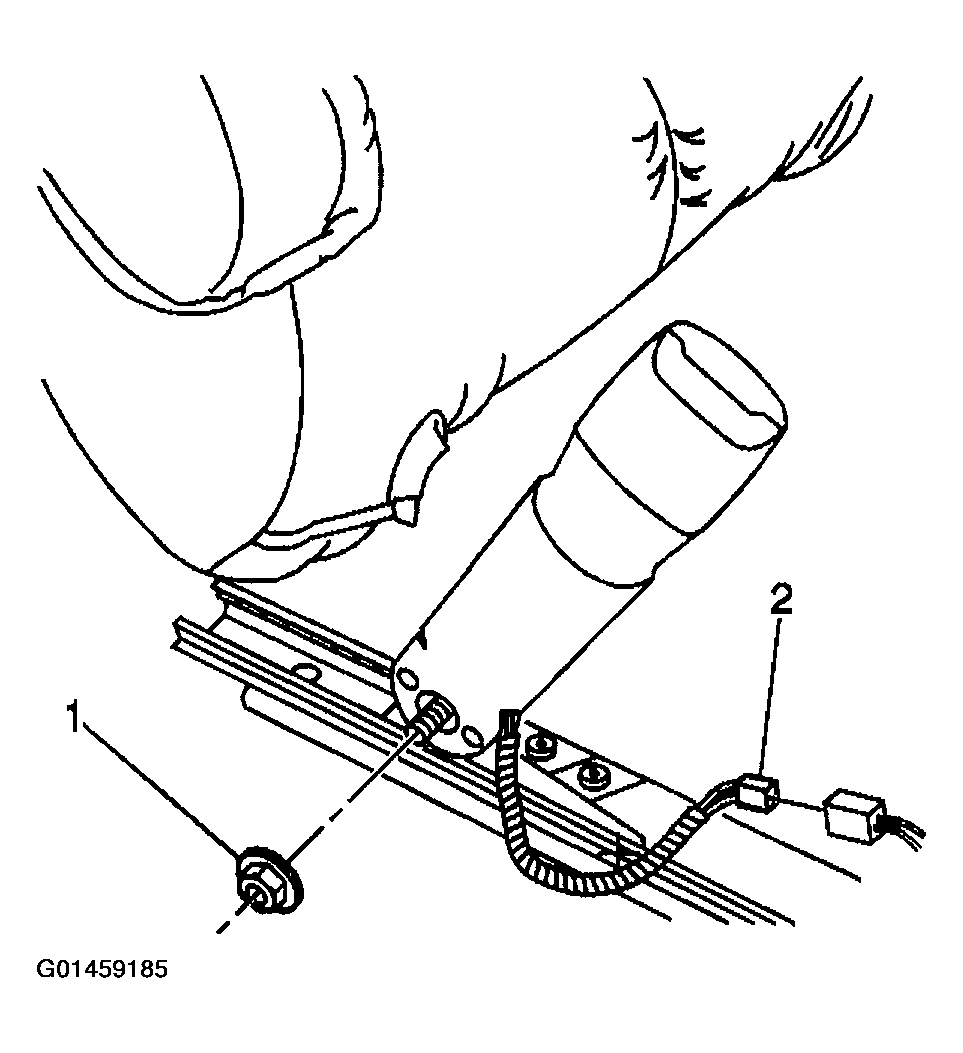

    Fig 1: Removing Inboard Seat Belt Buckle And Nut - Front (Power)
    G01459185Courtesy of GENERAL MOTORS CORP.
