Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cushion tilt mechanism, if equipped.
  2. Install the EZ entry rod (4), if equipped with the EZ entry feature.
  3. Install the cross brace (3).
  4. Install the bar (1) onto the racks (2). Bend the tabs in order to secure the bar.

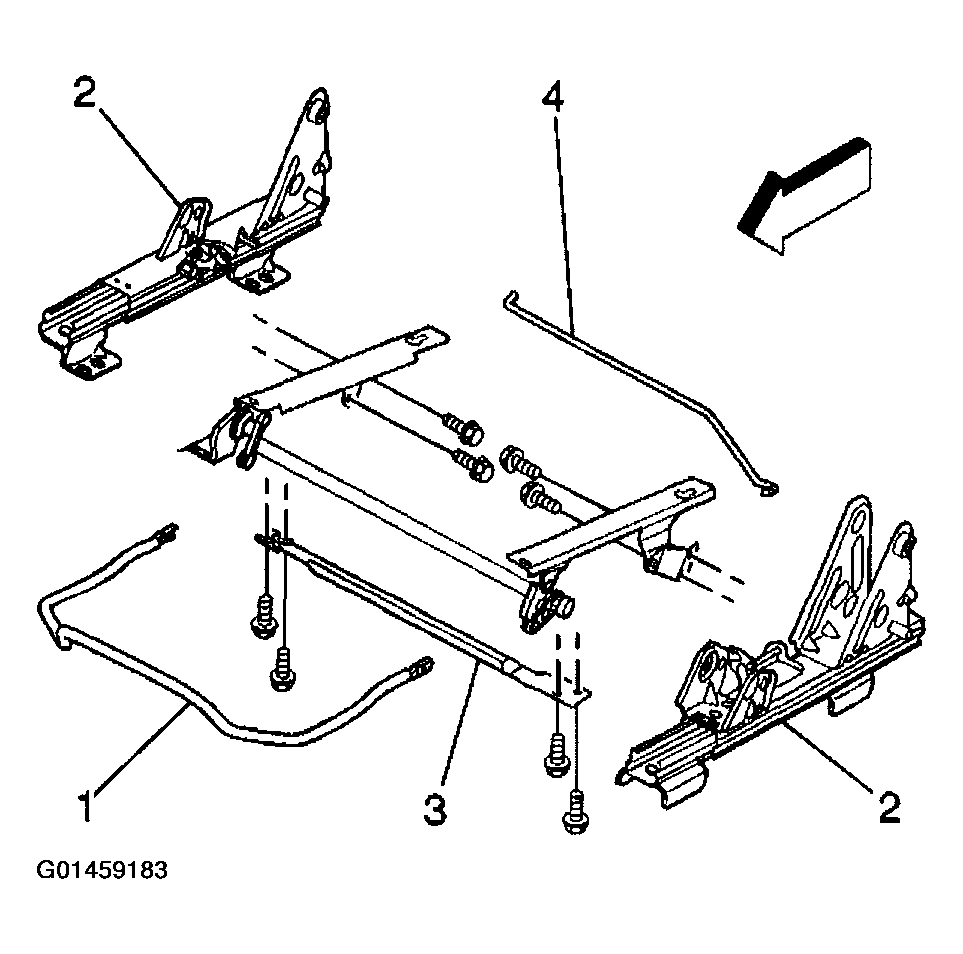

    Fig 1: Installing EZ Entry Rod - Front (Manual)
    G01459183Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the inboard seat belt buckle and nut (1).

    Tighten

    1. Tighten the nut to 53 N.m (39 lb ft).
  6. Connect the electrical connection (2).
  7. Install the seat adjuster track cover. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT  .
  8. Install the seat back hinge/recliner mechanism. Refer to SEAT BACK HINGE/RECLINER MECHANISM REPLACE - FRONT  .
  9. Install the seat back frame. Refer to SEAT BACK FRAME REPLACEMENT - FRONT  .
  10. Install the seat cushion frame. Refer to SEAT CUSHION FRAME REPLACEMENT - FRONT  .

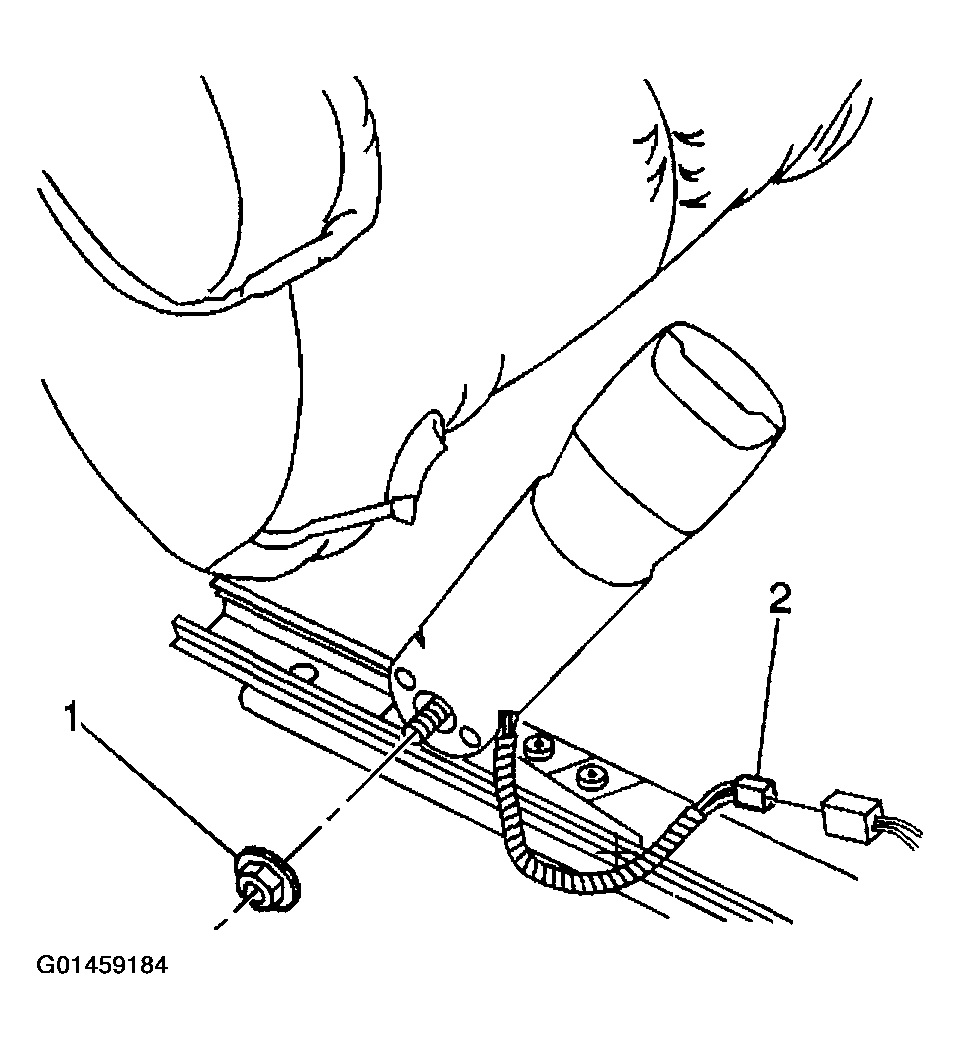

    Fig 2: Installing Inboard Seat Belt Buckle And Nut - Front (Manual)
    G01459184Courtesy of GENERAL MOTORS CORP.
  11. Install the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  12. Install the front seat in the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
