Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
  2. Remove the head restraint and guides. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC)  or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC)  or HEAD RESTRAINT REPLACEMENT (FOLDING)  .
  3. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  4. Drill out the rivet holes on the bolster paddles (1).

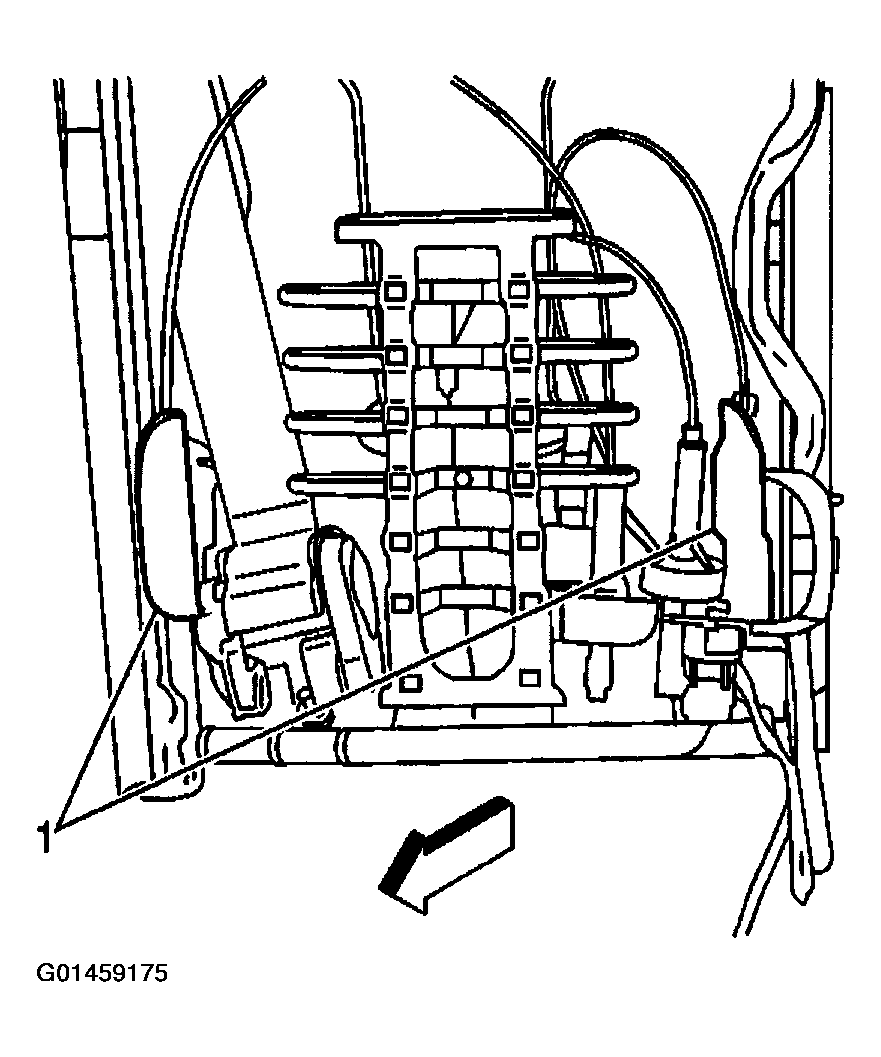

    Fig 1: Drilling Out Rivet Holes On Bolster Paddles
    G01459175Courtesy of GENERAL MOTORS CORP.
  5. Detach the lumbar clip from the top of the seat frame.
  6. Remove the lumbar wire from the bottom of the seat frame.
  7. Disconnect the electrical connectors to the motors.
  8. Remove the power lumbar/bolster assembly from the seat.

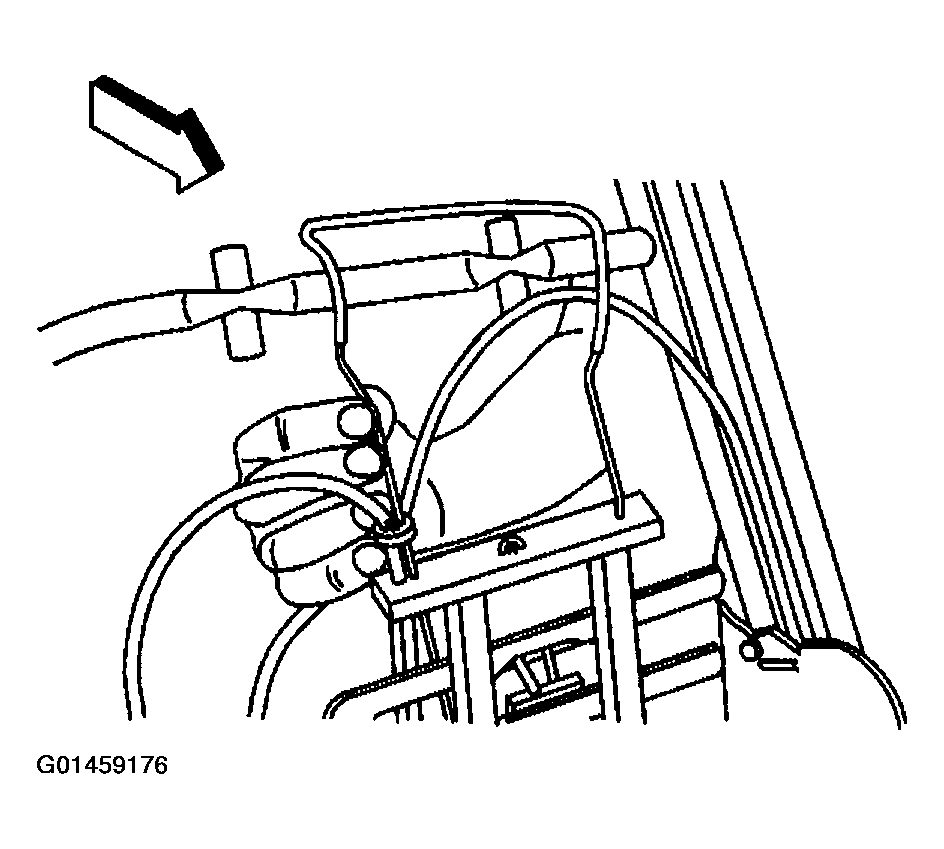

    Fig 2: Removing Power Lumbar/Bolster Assembly From Seat
    G01459176Courtesy of GENERAL MOTORS CORP.
