Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power lumbar/bolster assembly on the seat.
  2. Connect the electrical connectors to the motors.
  3. Fasten the lumbar wire at the bottom of the frame.
  4. Attach the lumbar clip onto the top of the seat frame.

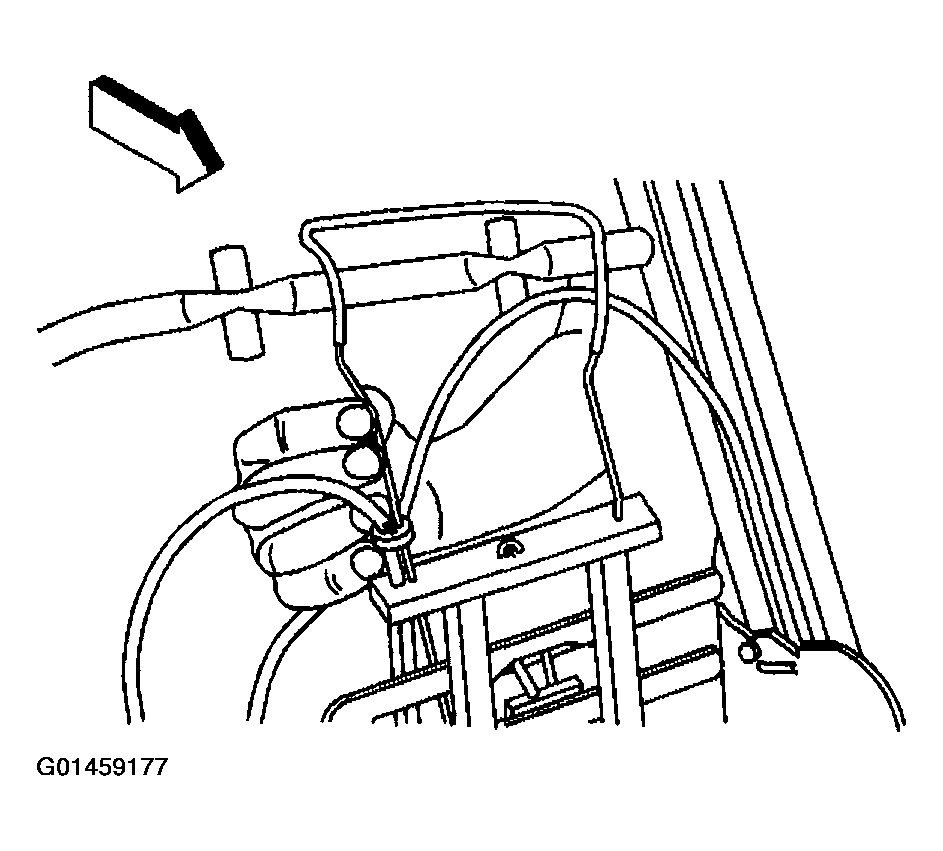

    Fig 1: Attaching Lumbar Clip Onto Top Of Seat Frame
    G01459177Courtesy of GENERAL MOTORS CORP.
  5. Install the rivets to secure the bolster paddles (1).
  6. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  7. Install the head restraint and guides. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC)  or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC)  or HEAD RESTRAINT REPLACEMENT (FOLDING)  .
  8. Install the seat in the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

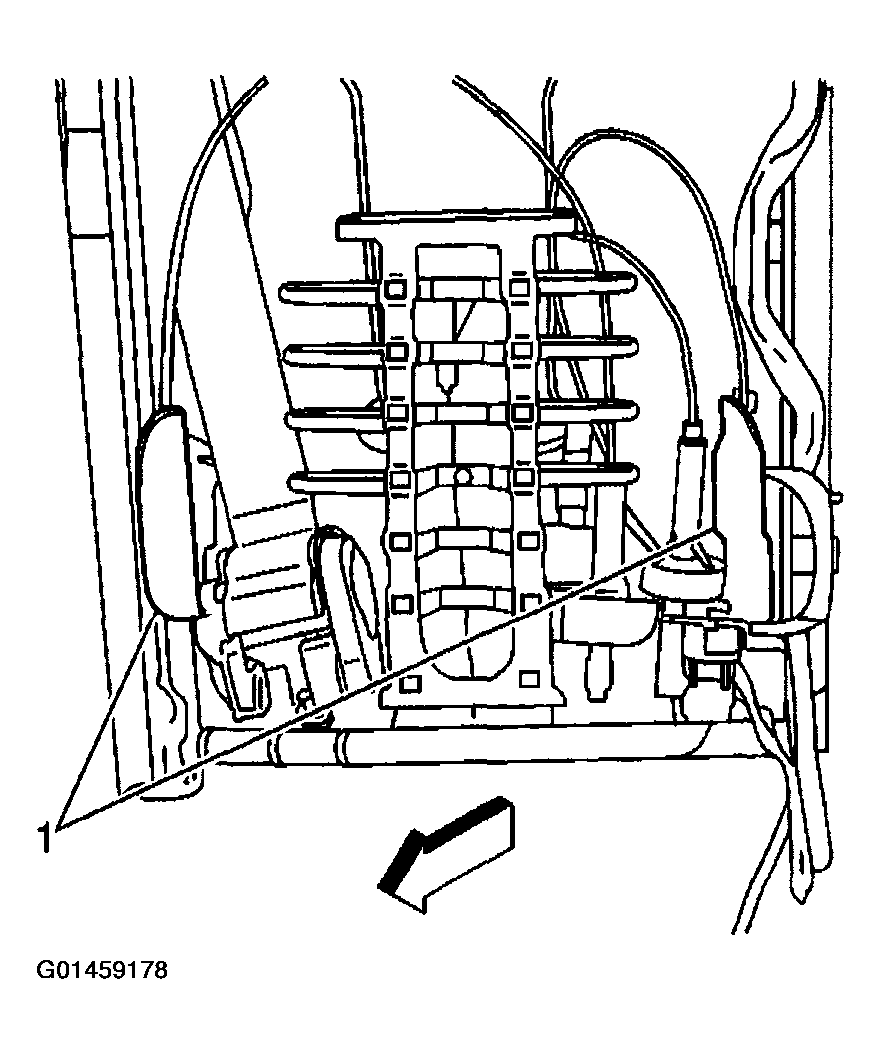

    Fig 2: Installing Rivets To Secure Bolster Paddles
    G01459178Courtesy of GENERAL MOTORS CORP.
