Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Disconnect the electrical connector.
  3. Remove the seat heater switch retaining screws.
  4. Remove the switch from the vehicle.

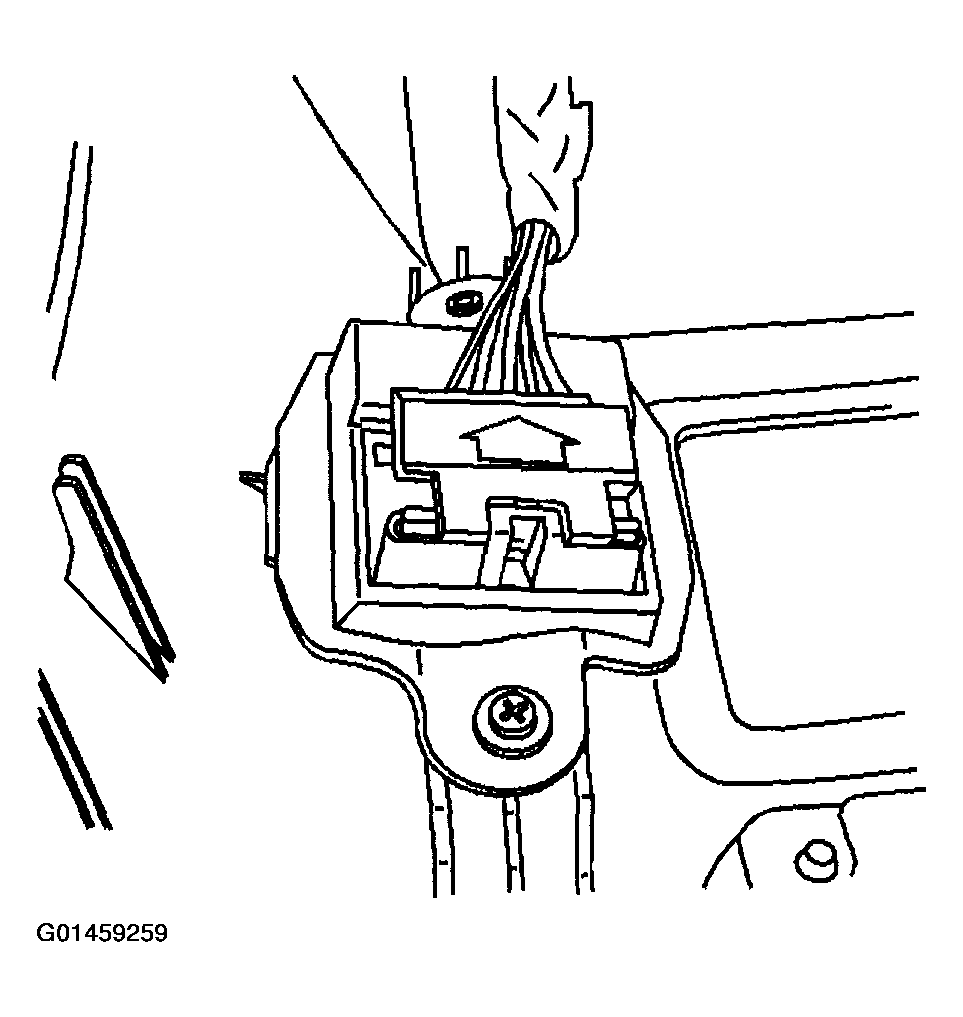

    Fig 1: Removing Switch From Vehicle
    G01459259Courtesy of GENERAL MOTORS CORP.
