Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the switch to the console panel.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the retaining screw.

    Tighten

    1. Tighten the screws to 6 N.m (14 lb in).
  3. Connect the electrical connector.
  4. Install the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .

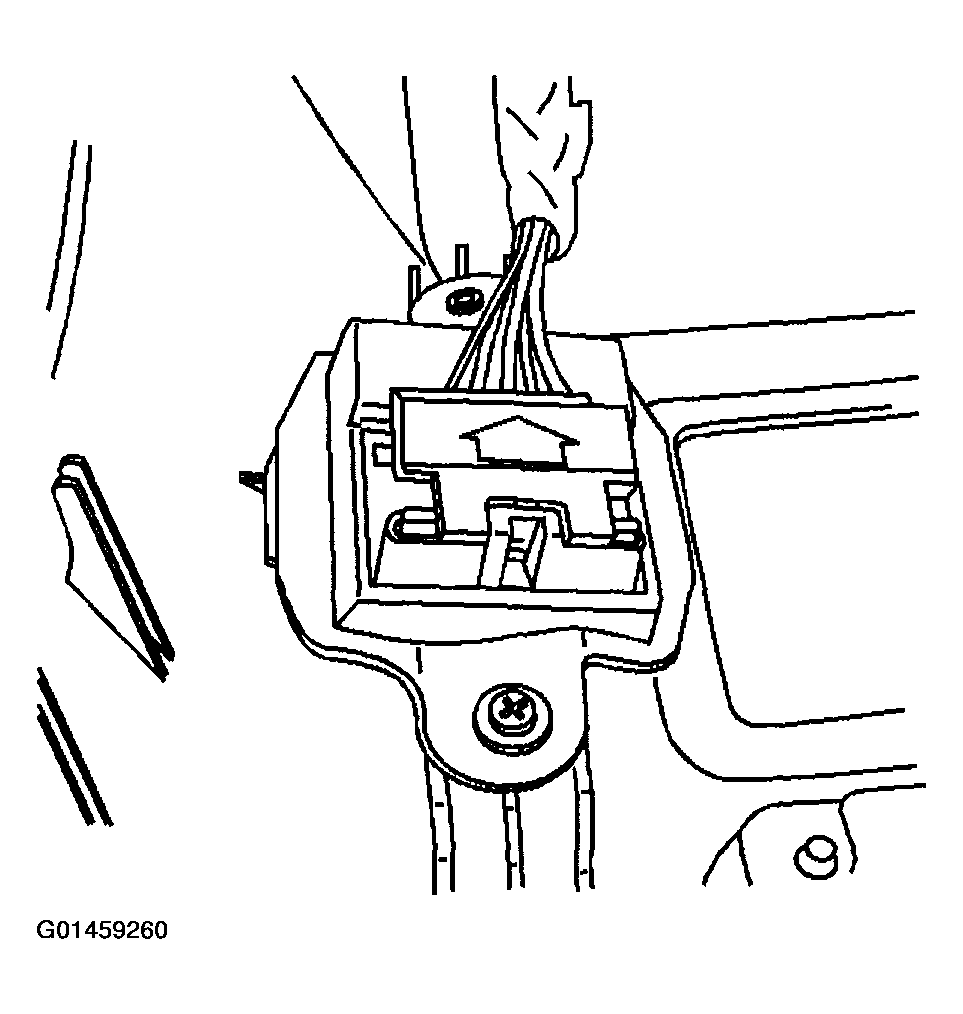

    Fig 1: Installing Switch To Console Panel
    G01459260Courtesy of GENERAL MOTORS CORP.
