Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide up the seat back trim cover in order to gain access to the rear cardboard panel fasteners. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  2. Remove the panel fasteners. Pull back the panel in order to gain access to the bushings.
    Fig 1: Removing Panel Fasteners
    G01459211Courtesy of GENERAL MOTORS CORP.
  3. Remove the head restraint retainers from the seat back frame by squeezing the retaining tabs together at the base of the guide(s) and lifting up.

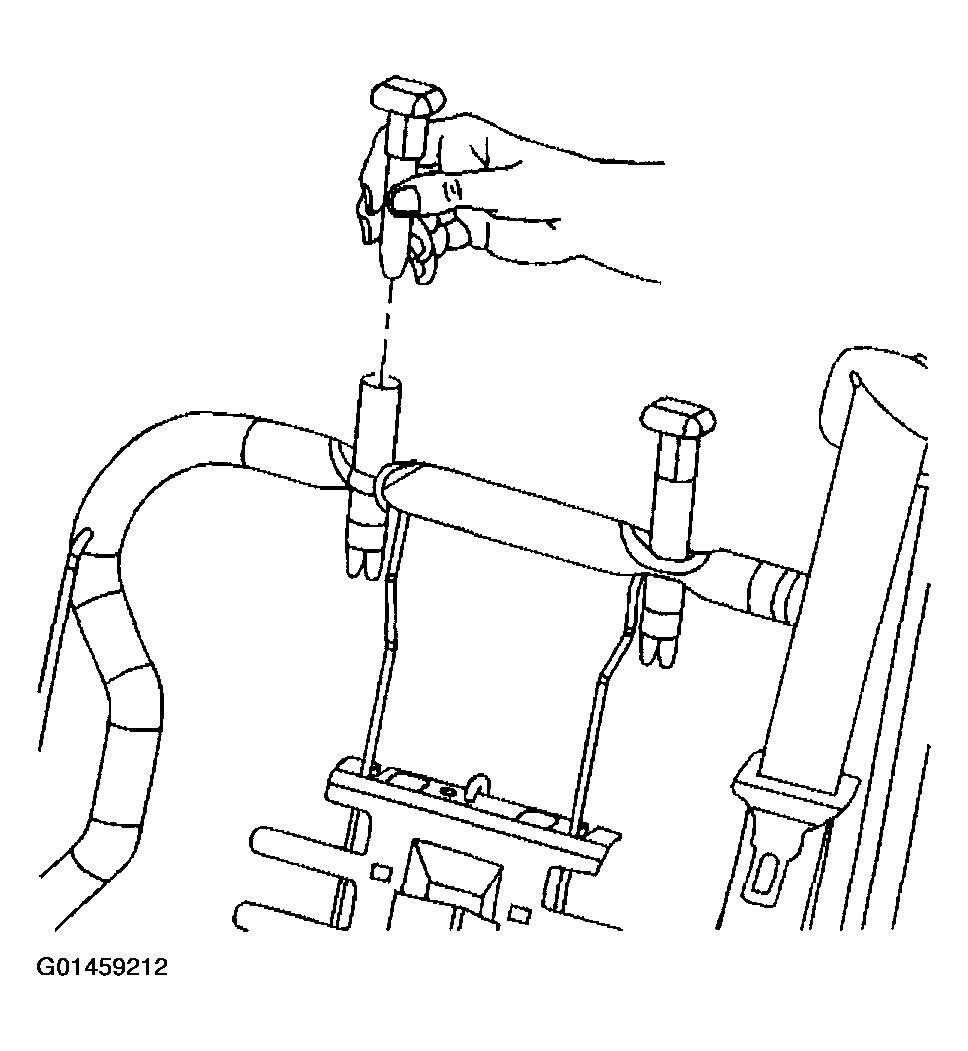

    Fig 2: Removing Head Restraint Retainers
    G01459212Courtesy of GENERAL MOTORS CORP.
