Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint retainers by pressing into the seat back frame until the retaining tabs snap into place at the bottom of the frame opening.

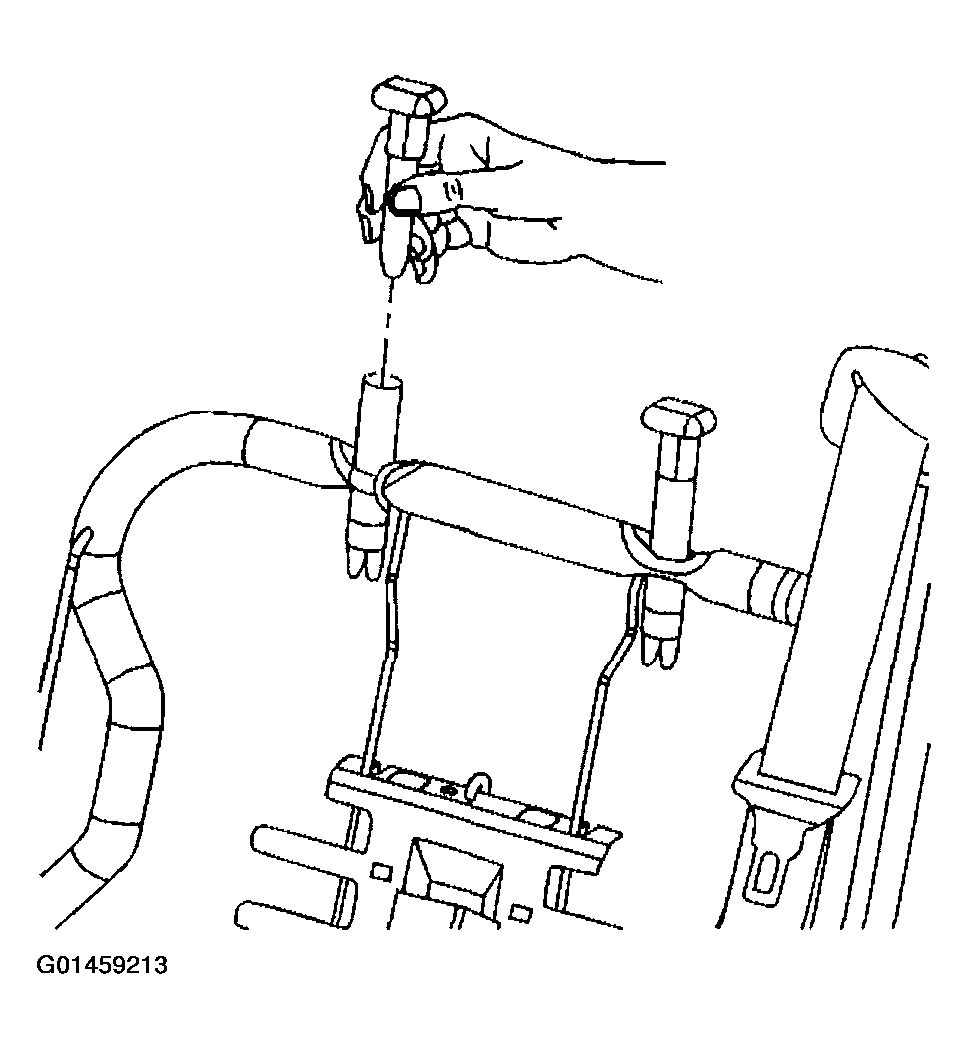

    Fig 1: Installing Head Restraint Retainers
    G01459213Courtesy of GENERAL MOTORS CORP.
  2. Position the cardboard panel to the seat back frame and install the panel fasteners.
  3. Install the seat back trim cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
    Fig 2: Installing Panel Fasteners
    G01459214Courtesy of GENERAL MOTORS CORP.
