Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the cable into the hole in the head restraint release mechanism.
  2. Ensure the retainer tabs fully extend to secure the cable to the head restraint mechanism.
  3. Clip the cable end onto the head restraint mechanism.

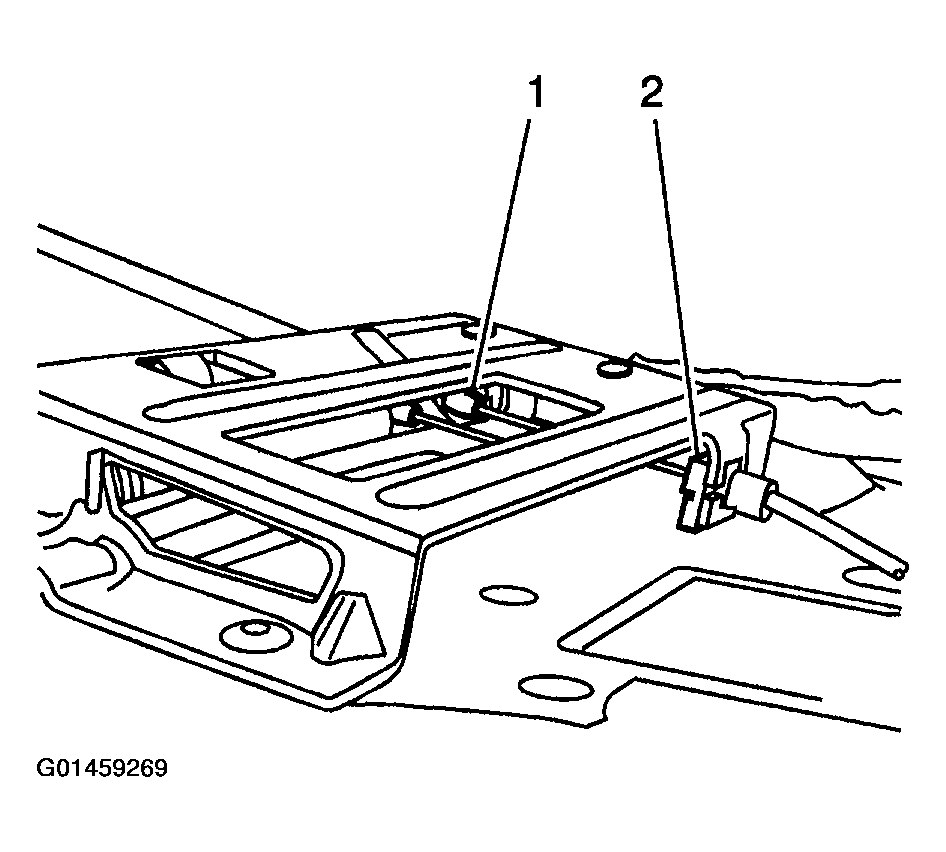

    Fig 1: Clipping Cable End Onto Head Restraint Mechanism
    G01459269Courtesy of GENERAL MOTORS CORP.
  4. Push the cable end into the hole in the seat back latch.
  5. Ensure the retainer tabs fully extend to secure the cable to the seat back latch.
  6. Clip the cable end onto the seat back latch.
  7. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT)  or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH)  .

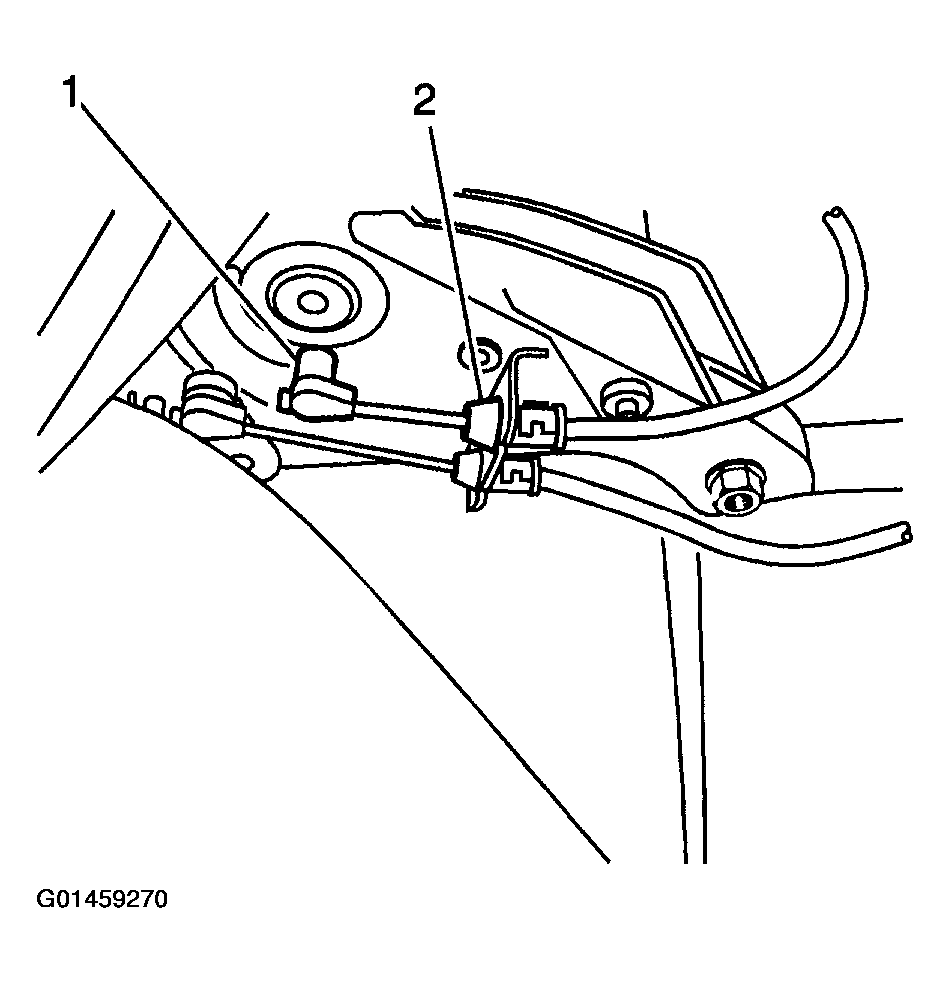

    Fig 2: Clipping Cable End Onto Seat Back Latch
    G01459270Courtesy of GENERAL MOTORS CORP.
