Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. The lack of communication may be caused by a partial or a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
4. If no DTCs are present refer to the symptom list in Symptoms in order to determine the correct diagnostic procedure to use.
5. The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will collect all the available information before tests are performed.

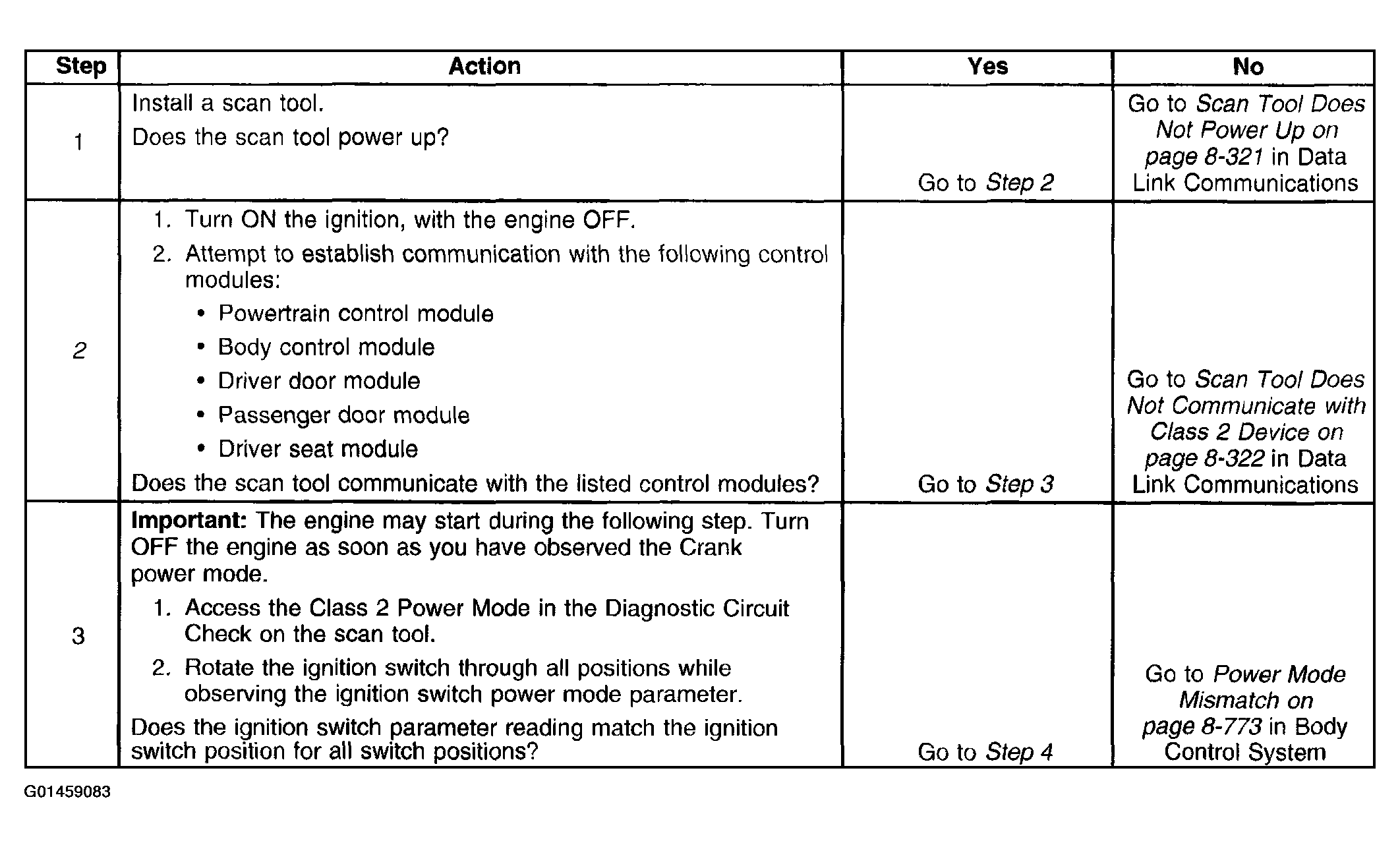

Fig 1: Diagnostic System Check - Power Seat Systems (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

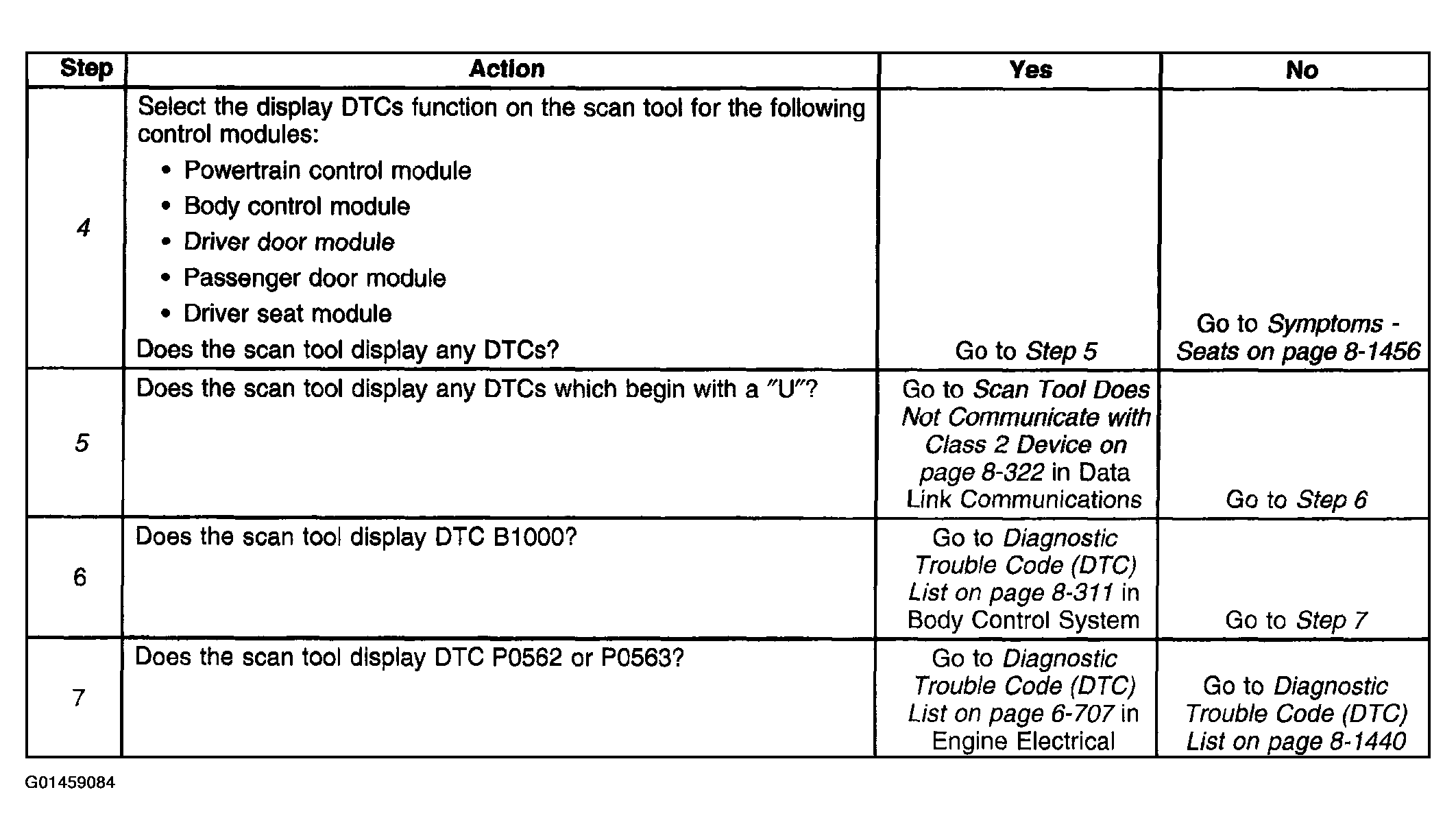

Fig 2: Diagnostic System Check - Power Seat Systems (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
