Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

When an adjuster motor control circuit is shorted to ground the driver seat module will also set a DTC for the affected motor.

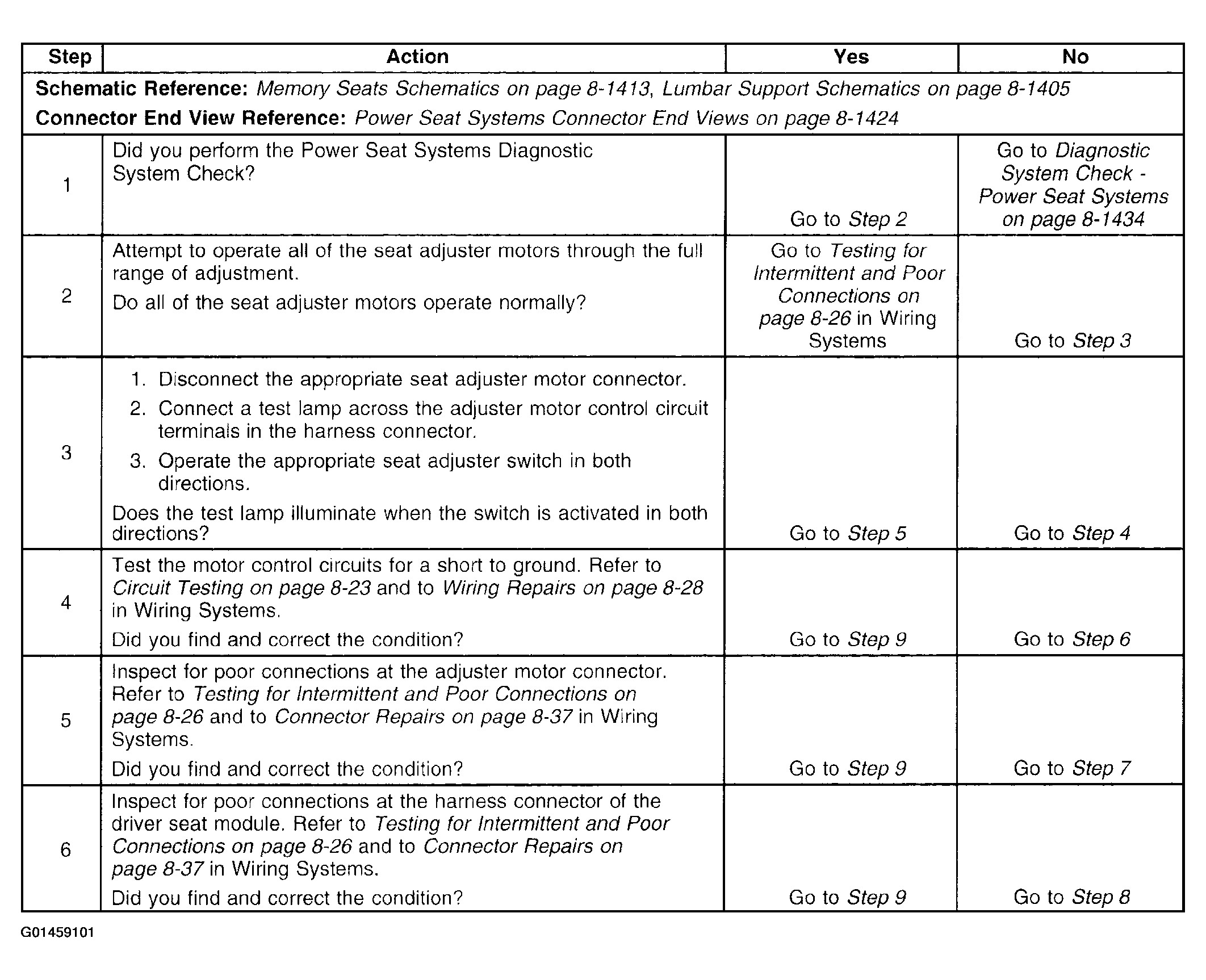

Fig 1: Diagnostic System Check - B3962 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

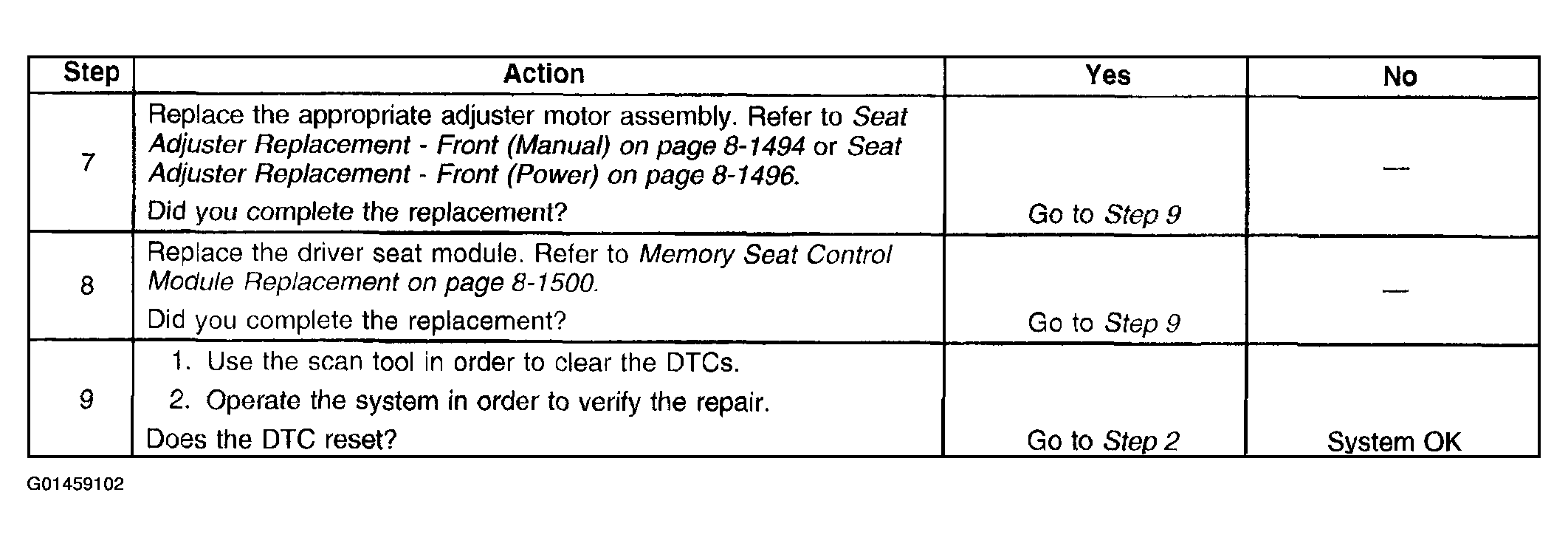

Fig 2: Diagnostic System Check - B3962 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
