Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. During this test the driver seat module must see an active switch input before power will be supplied the position sensor.
  2. 4. During this test the driver seat module must see an active switch input before power will be supplied the position sensor.
  3. 5. During this test the driver seat module must see an active switch input before power will be supplied the position sensor.

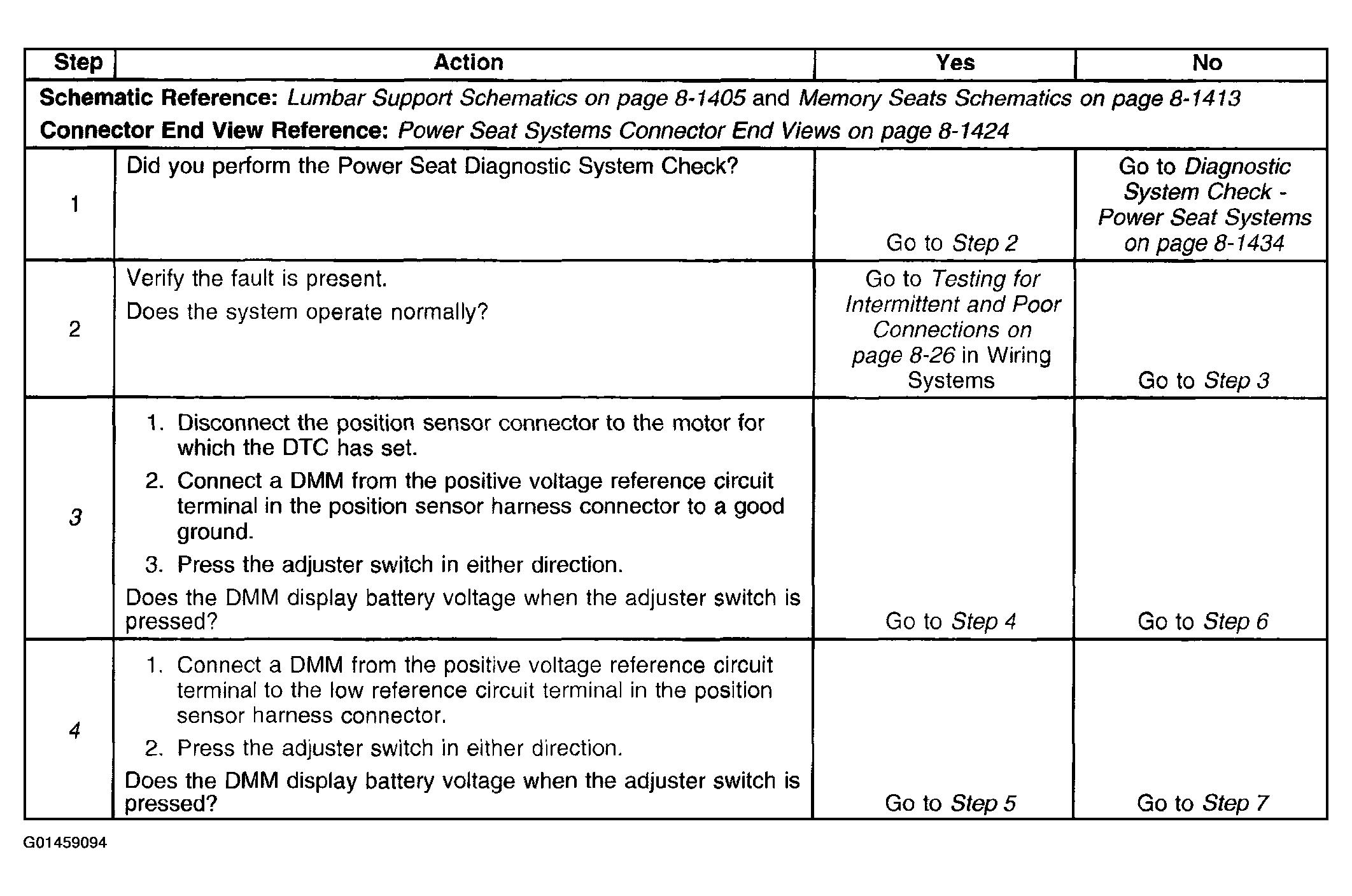

Fig 1: Diagnostic System Check - B1850, B1860, B1960, B2355, B2365, Or B2375 (1 Of 2)
G01459094Courtesy of GENERAL MOTORS CORP.

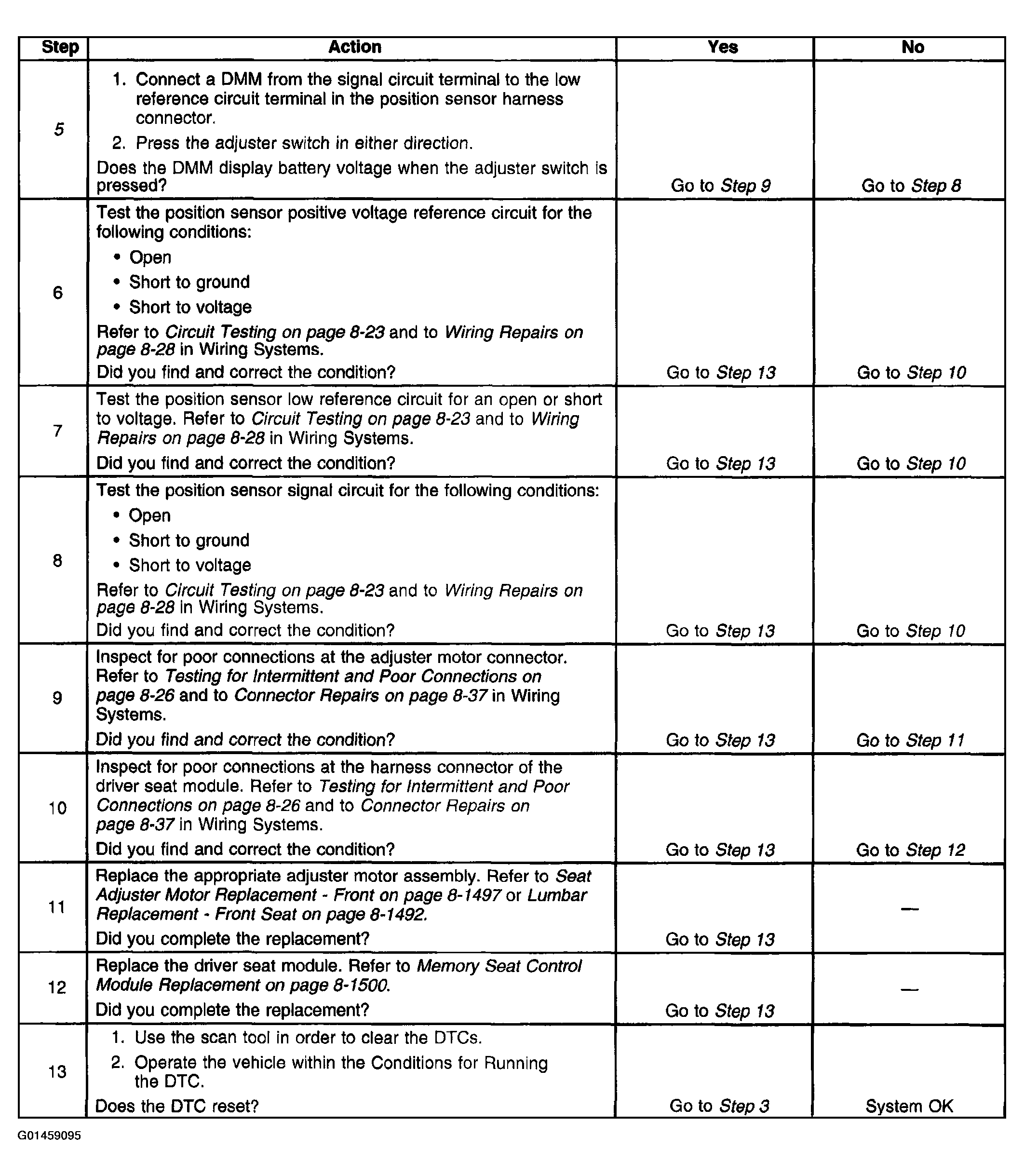

Fig 2: Diagnostic System Check - B1850, B1860, B1960, B2355, B2365, Or B2375 (2 Of 2)
G01459095Courtesy of GENERAL MOTORS CORP.
