Power Window Wiring Schematics (Left Doors)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

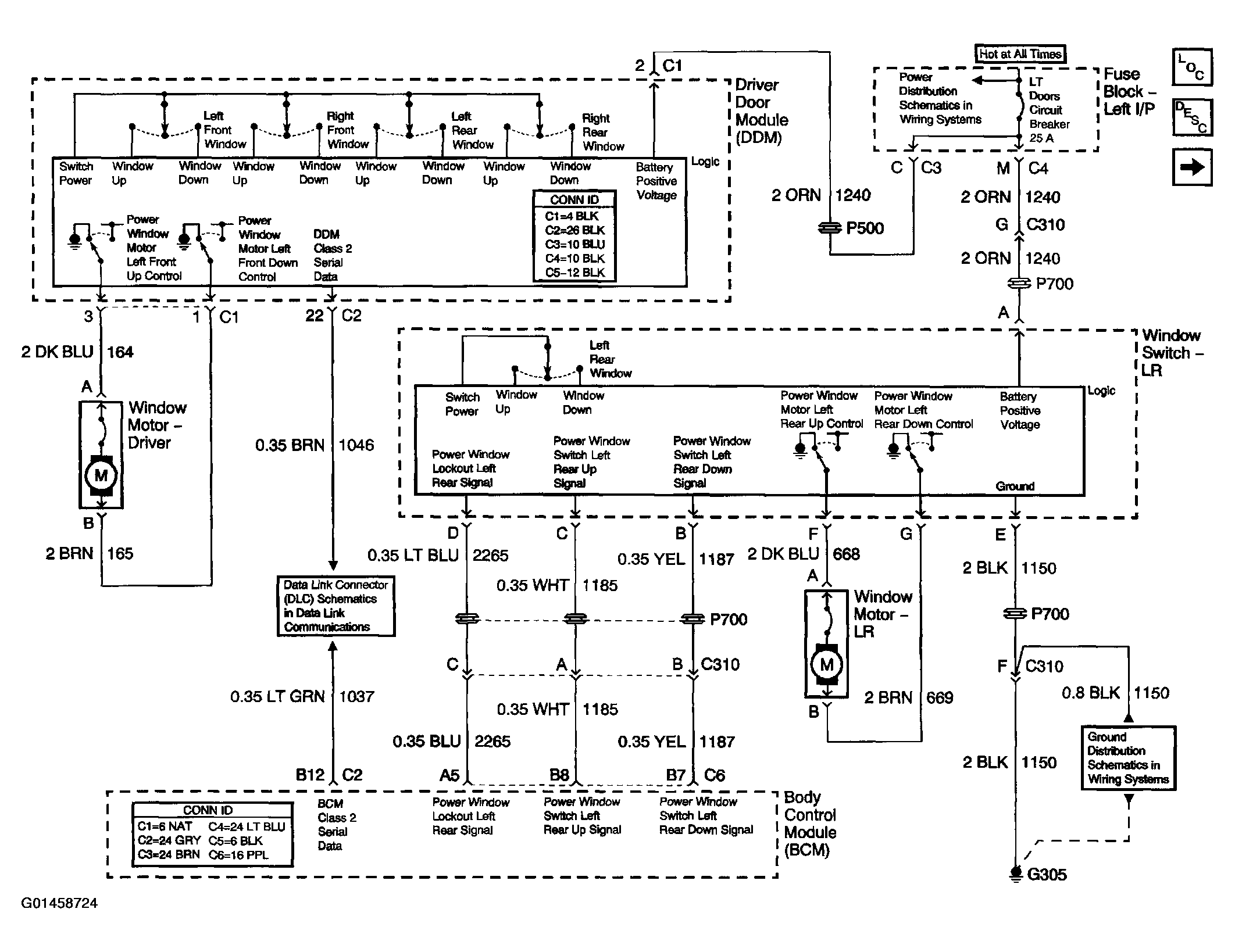

Fig 1: Power Window Schematics (Left Doors) Wiring Chart

Courtesy of GENERAL MOTORS CORP.

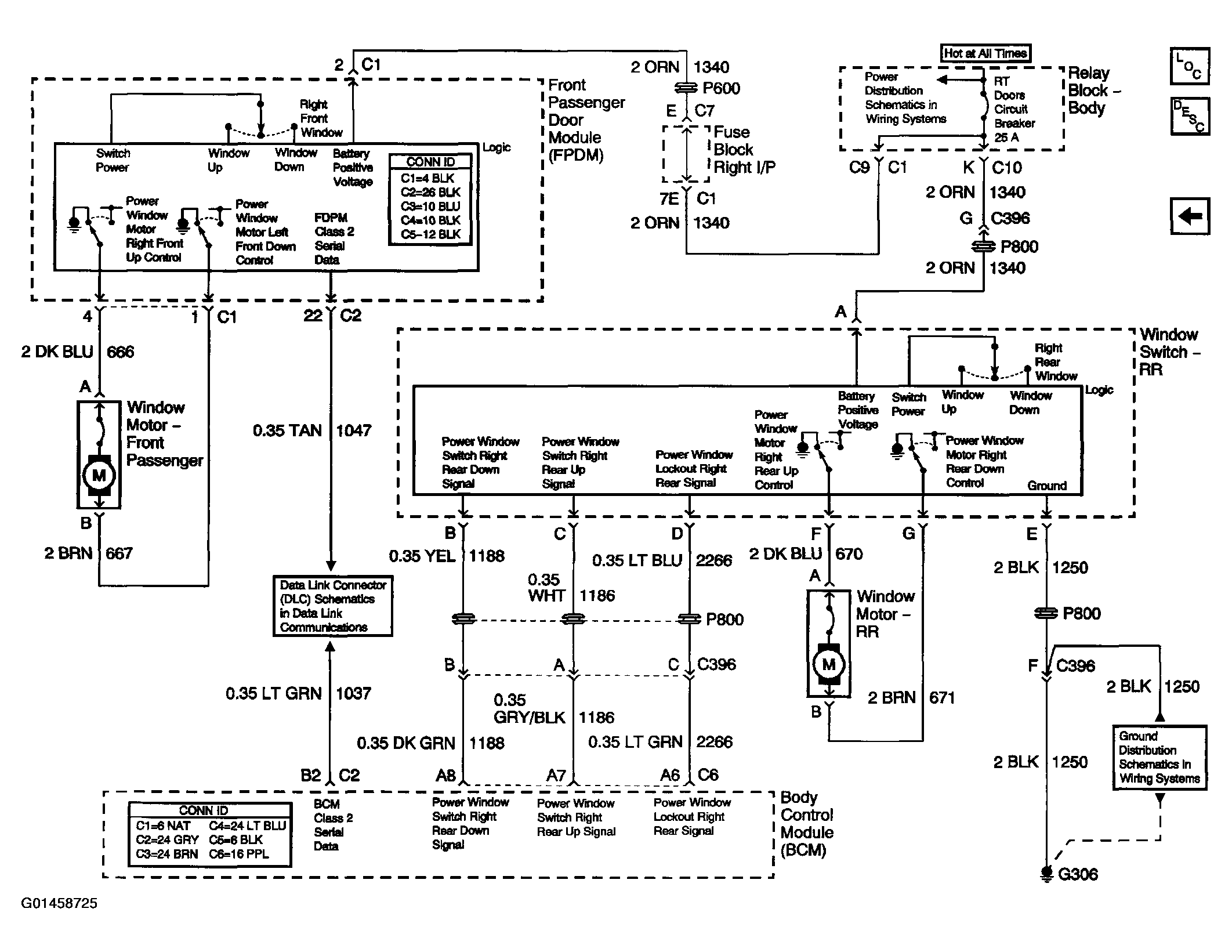

Fig 2: Power Window Schematics (Right Doors) Wiring Chart

Courtesy of GENERAL MOTORS CORP.
