Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR in Interior Trim.
  2. Disconnect the cross car wiring harness.

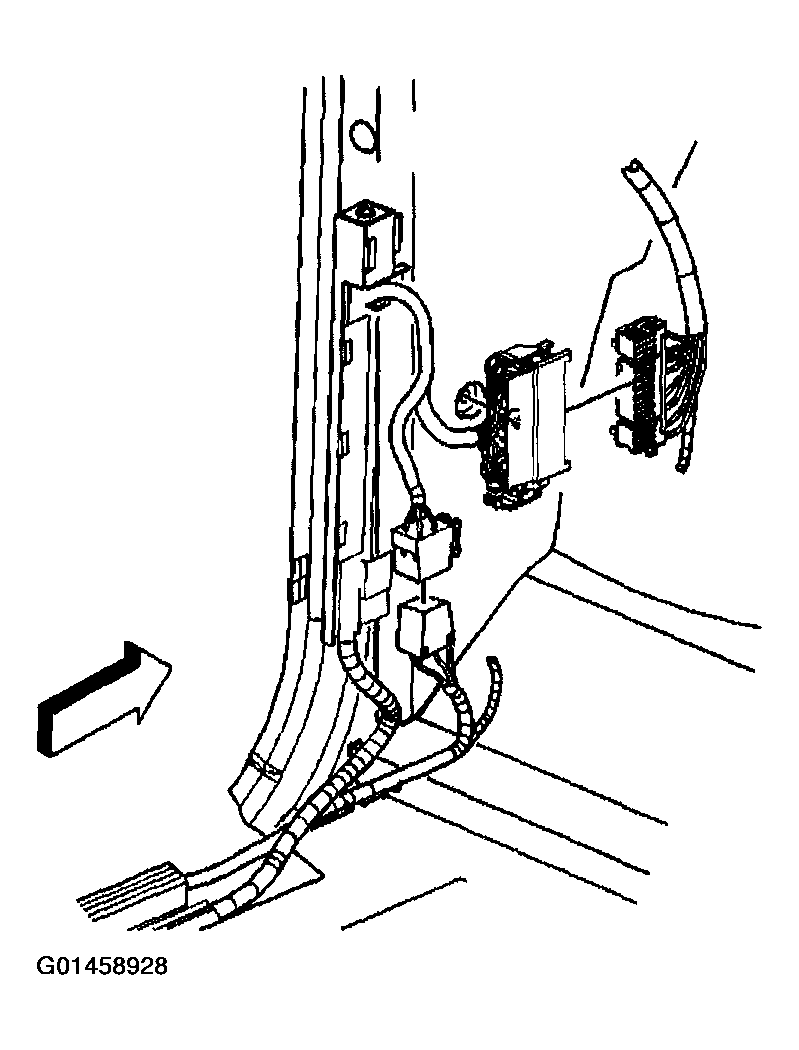

    3. Fig 1: Removing Wiring Harness Door
    G01458928Courtesy of GENERAL MOTORS CORP.
  3. Remove the conduit.
  4. Remove the upper trim panel extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  5. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  6. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  7. Disconnect the following components:

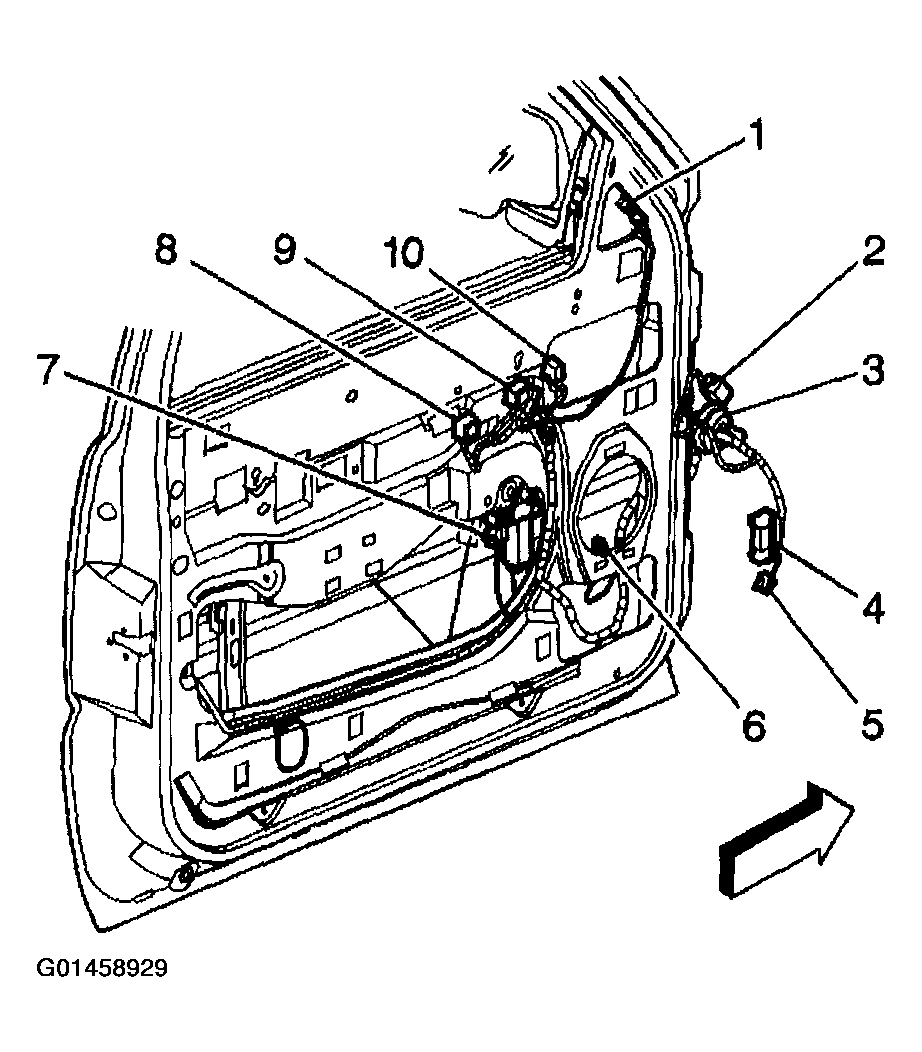

    Fig 2: Identifying Door Wiring Harness Components
    G01458929Courtesy of GENERAL MOTORS CORP.
    • The outside power mirror (1)
    • C203 (4)
    • P500 (5)
    • The speaker (6)
    • The power window motor (7)
    • The power lock switch (8)
    • The power window switch (9)
    • The power mirror switch (10)
    • The door lock actuator
  8. Remove the door wiring harness from the door by pulling the harness through the conduit (3).
