Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window. Refer to WINDOW REPLACEMENT - REAR DOOR (SUBURBAN/YUKON XL/AVALANCHE/ESCLD E)  or WINDOW REPLACEMENT - REAR DOOR (TAHOE/YUKON/ESCALADE)  .
  2. Remove the window glass weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW  .
  3. Remove the front window run channel top bolt.
  4. Remove the front window run channel from the door.

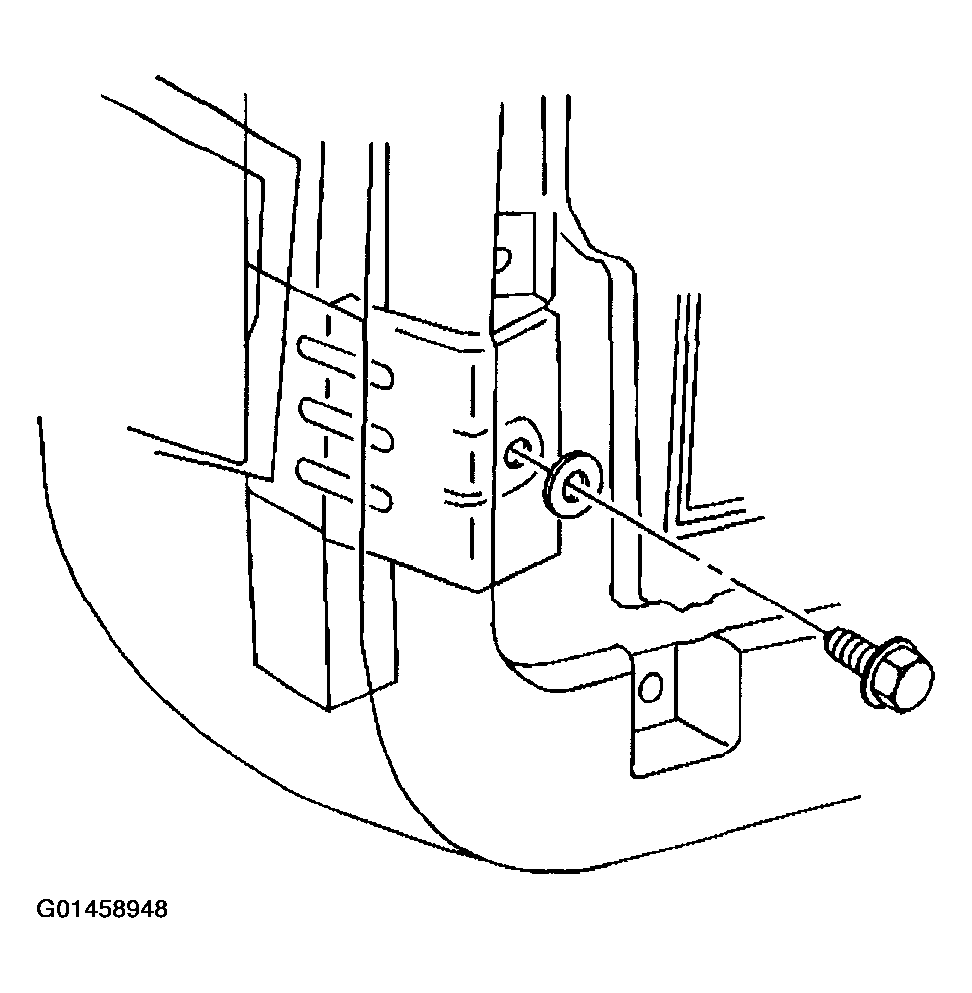

    5. Fig 1: Removing Rear Door Window Run Channel
    G01458948Courtesy of GENERAL MOTORS CORP.
