Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  2. Remove the window glass weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FRONT DOOR WINDOW  .
  3. Remove the window run channel bolts.
  4. Remove the front and the rear window run channels from the door.

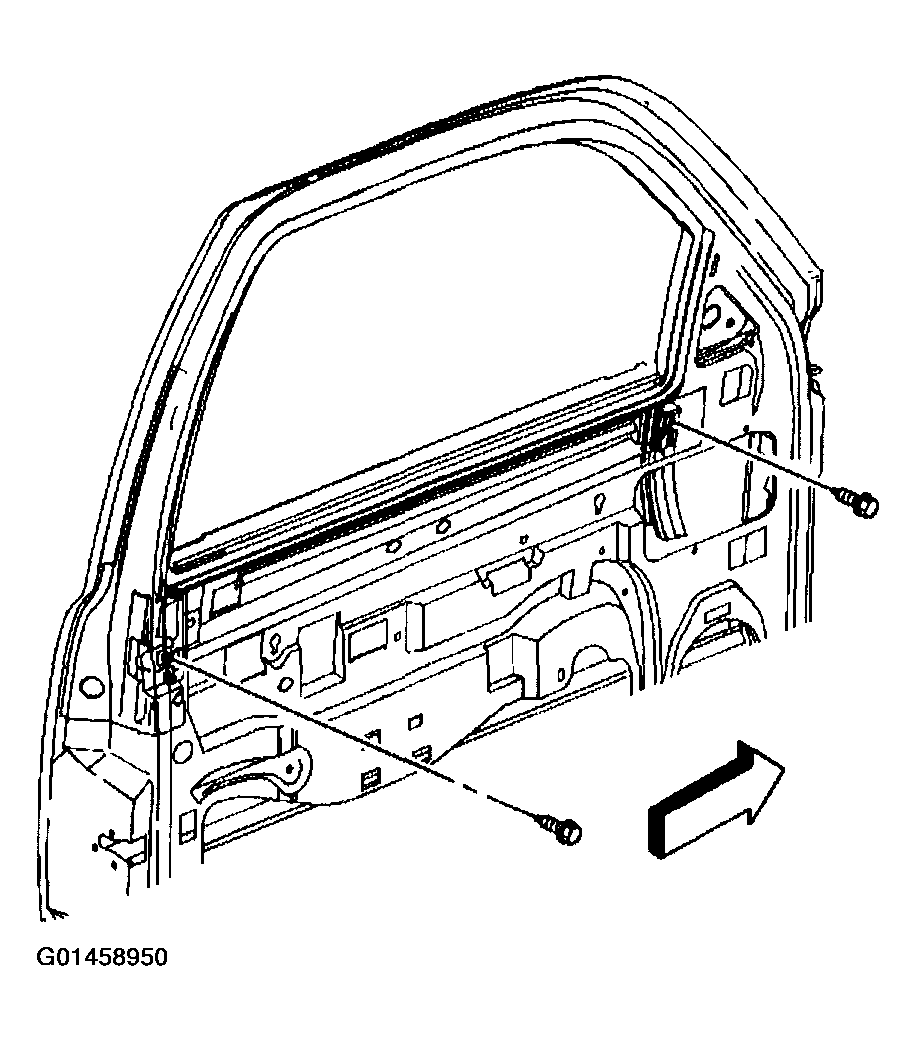

    5. Fig 1: Removing Front Door Window Run Channel
    G01458950Courtesy of GENERAL MOTORS CORP.
