Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially raise the window.
  2. Remove the upper trim panel extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  3. Remove the manual door-lock lever.
  4. Remove the manual window handle, if equipped. Refer to WINDOW HANDLE REPLACEMENT  .
  5. Remove the door switch panel, if equipped. Refer to SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - DRIVER  and SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - PASSENGER  .
  6. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  7. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  8. Remove the front bolt attachment from the window run channel.

    Important:  Do not remove the bolts.

  9. Loosen the 2 retaining bolts (2) from the window assembly.

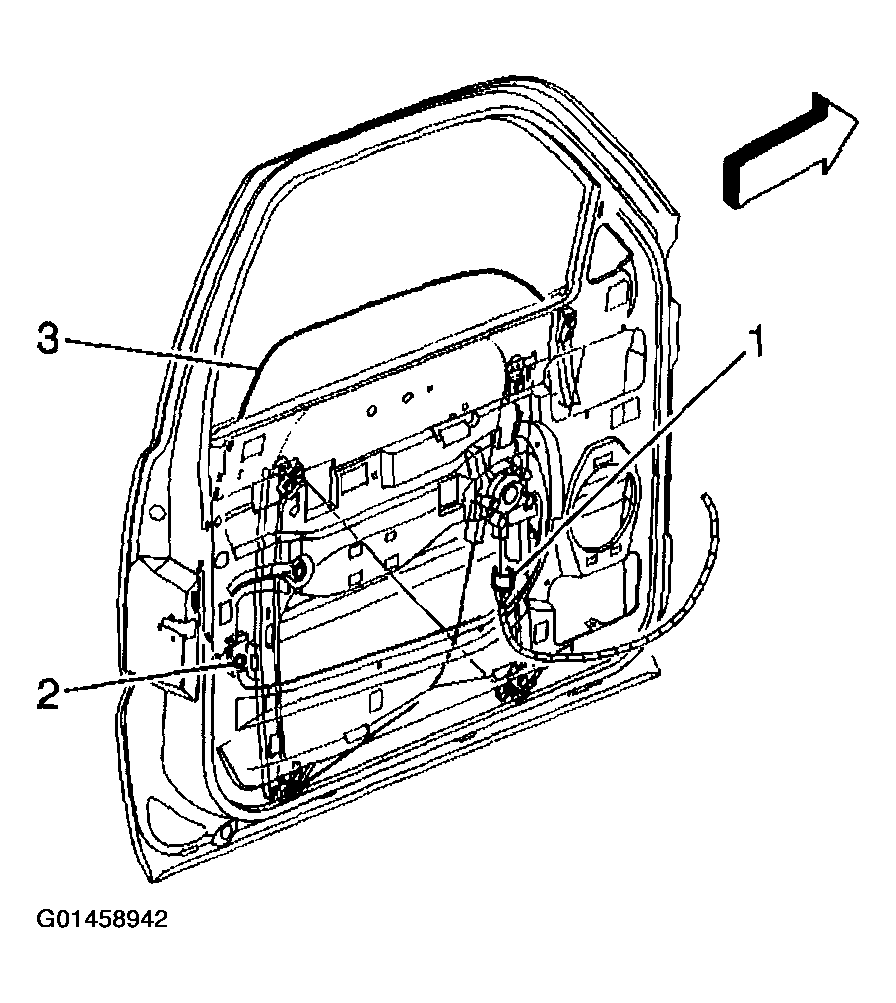

    10. Fig 1: Removing Front Door Window
    G01458942Courtesy of GENERAL MOTORS CORP.
  10. Remove the window glass (3) from the door by sliding the window glass out through the top.
