Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear door.
Remove the rear door weatherstrip by pulling the weatherstrip from the track.
Release push-in retainers on lower weatherstrip from door.
Remove the rear door weatherstrip from the rear door.

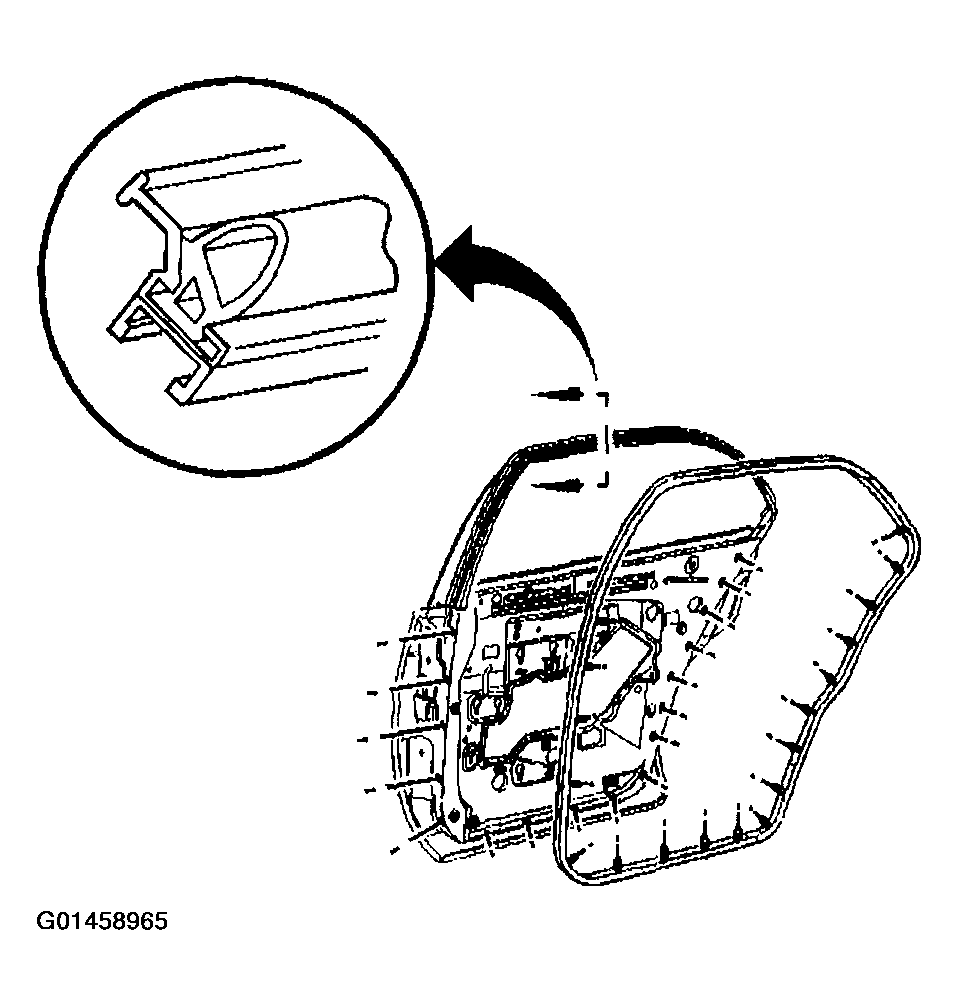

Fig 1: Removing Rear Door Weatherstrip

Courtesy of GENERAL MOTORS CORP.
