Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window. Refer to WINDOW REPLACEMENT - REAR DOOR (SUBURBAN/YUKON XL/AVALANCHE/ESCLD E)  or WINDOW REPLACEMENT - REAR DOOR (TAHOE/YUKON/ESCALADE)  .
  2. Pull the weatherstrip from the front window run channel.
  3. Pull the weatherstrip from the rear window run channel.
  4. Pull the weatherstrip from the window frame flange.

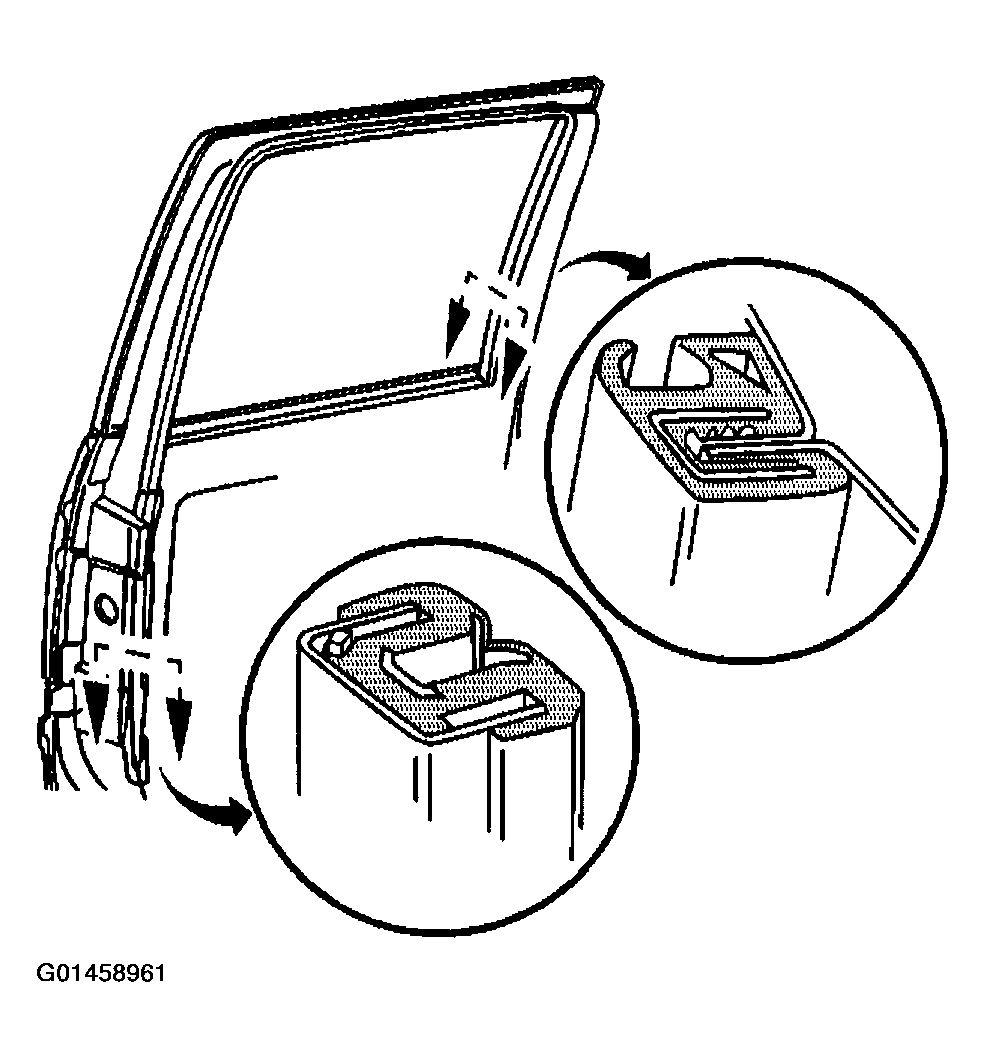

    5. Fig 1: Removing Rear Door Window Weatherstrip
    G01458961Courtesy of GENERAL MOTORS CORP.
