Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Remove the screws.
  5. Pull the weatherstrip from the following locations:
    • The front of the glass run channel
    • The top of the window frame flange
    • The rear of the glass run channel
  6. Remove the weatherstrip from the door.

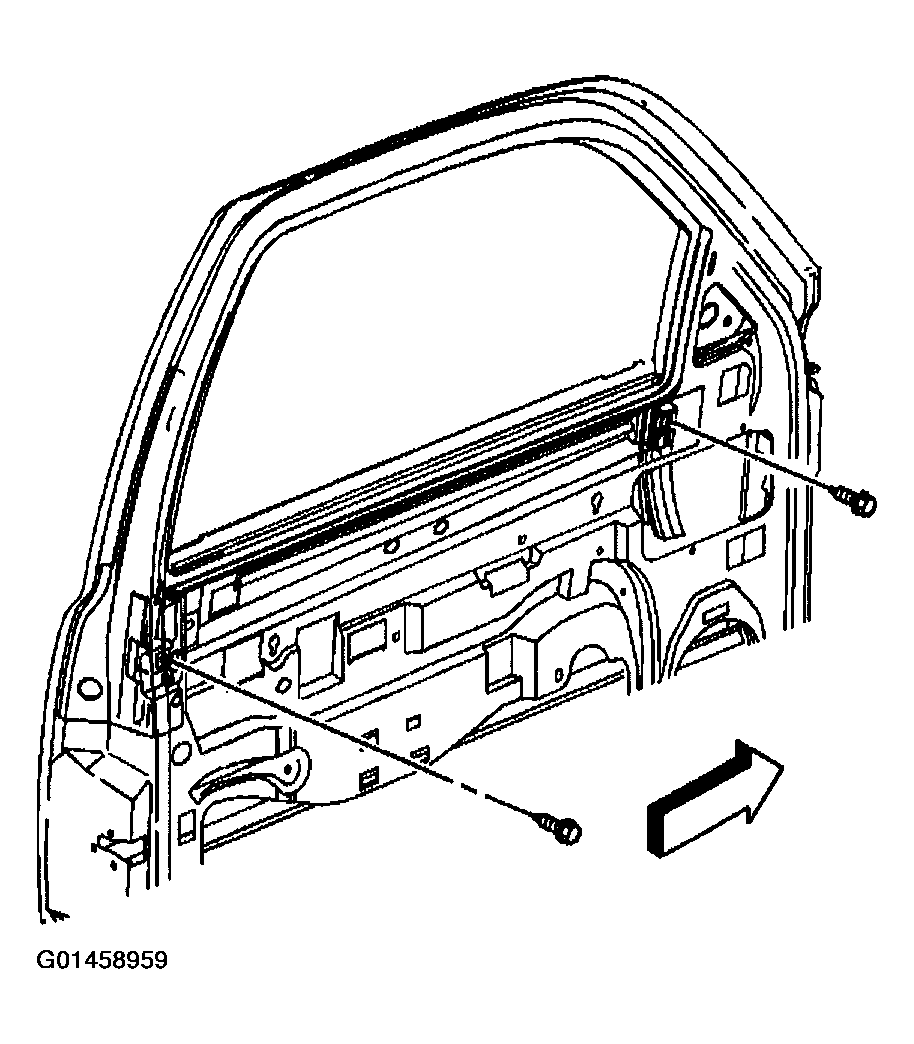

    7. Fig 1: Removing Front Door Window Weatherstrip
    G01458959Courtesy of GENERAL MOTORS CORP.
