Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT in Interior Trim.
  3. Remove the hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR in Interior Trim.
  4. Remove the windshield pillar molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in Interior Trim.
  5. Remove the weatherstrip from the rear side door opening. Peel the unit away from channel, pulling the weatherstrip from the pinchweld flange.

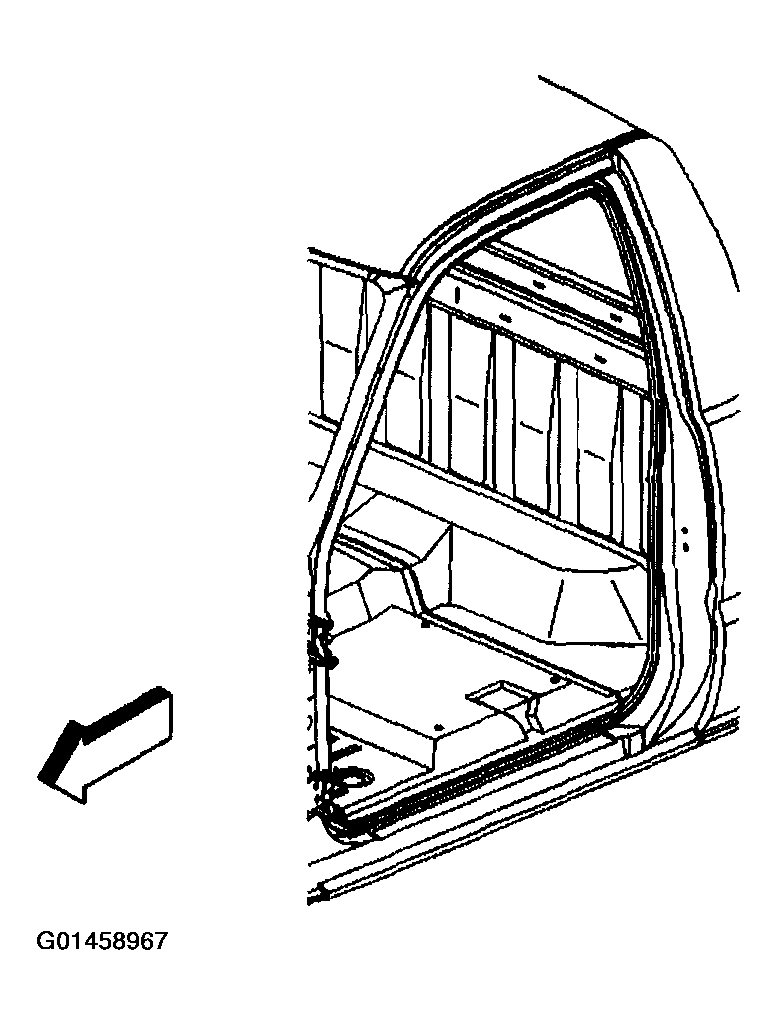

    6. Fig 1: Removing Front Door Opening Weatherstrip
    G01458967Courtesy of GENERAL MOTORS CORP.
