Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove inside door handle. Refer to DOOR HANDLE REPLACEMENT - INSIDE  .
  3. Note location of wiring and remove through deflector.
  4. Using a flat-bladed tool, separate the bond between the sealer and the door.
  5. Pull the waterproof sealing tape from the deflector.

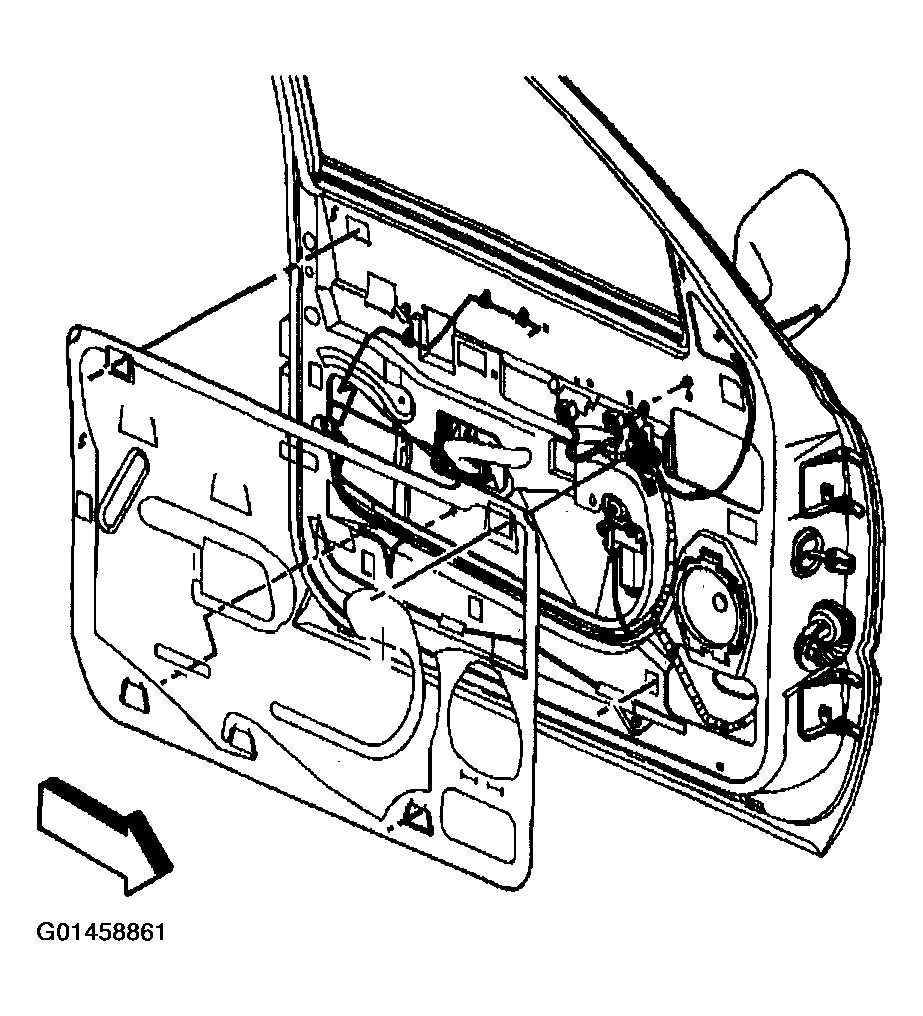

    6. Fig 1: Removing Water Deflector Front Door
    G01458861Courtesy of GENERAL MOTORS CORP.
  6. Remove the water deflector.
