Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Release the upper extension by pulling outward in order to release the upper retainer clip.
  3. Remove the upper extension from the trim panel by lifting up and out.

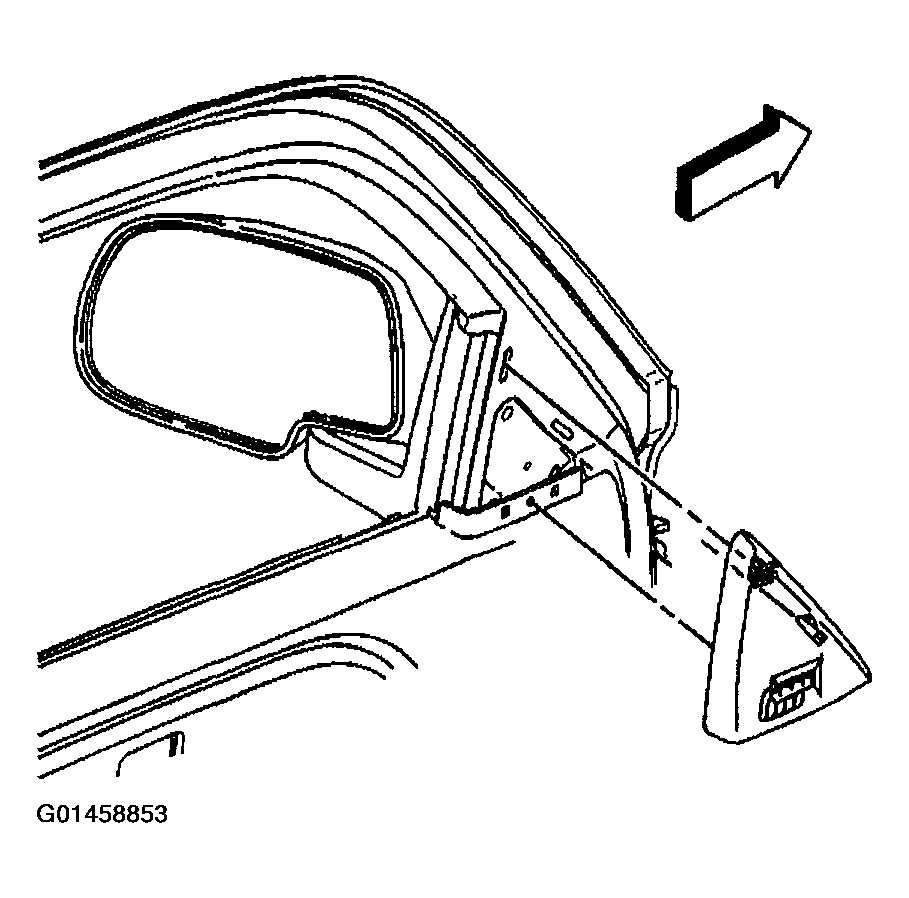

    4. Fig 1: Removing Trim Panel Upper Extension
    G01458853Courtesy of GENERAL MOTORS CORP.
