Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE  .
  2. Remove the window-regulator handle, if equipped. Refer to WINDOW HANDLE REPLACEMENT  .
  3. Remove the manual lock lever from the trim panel using a flat-bladed tool.
  4. Remove the trim panel screws.
  5. In order to remove the trim panel, slide the trim panel upward and outward in order to release the trim panel tab retainers.

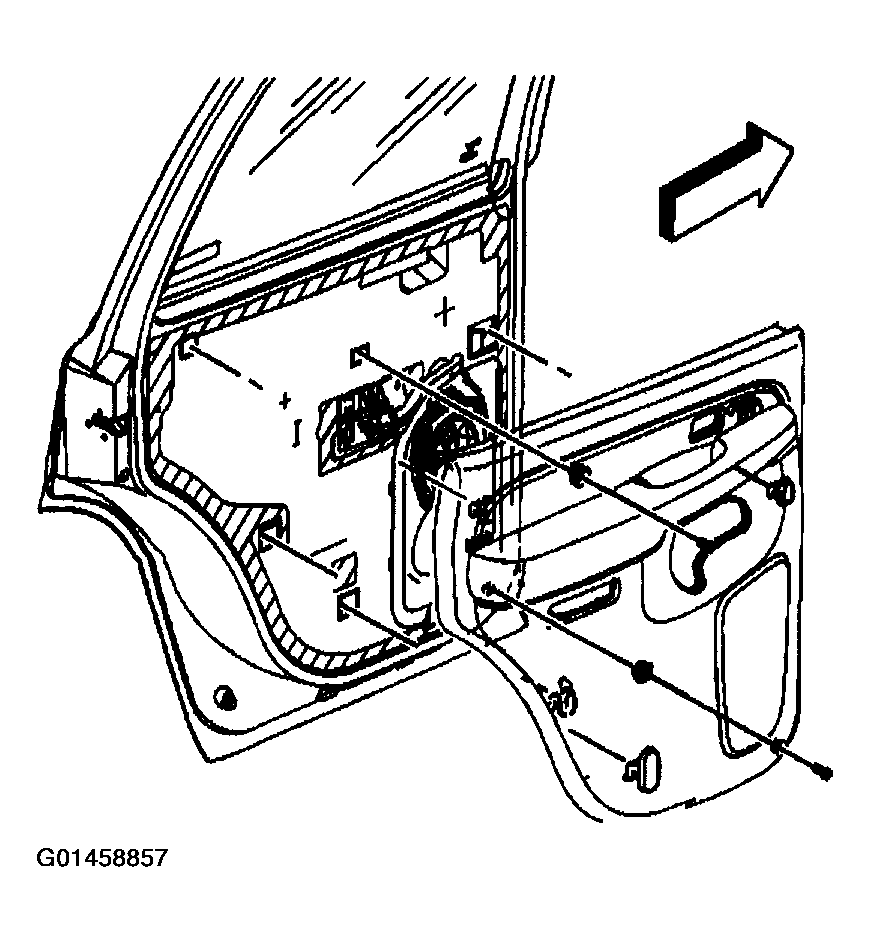

    6. Fig 1: Removing Trim Panel Side Rear Door (Tahoe/Yukon/Escalade)
    G01458857Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connectors, if necessary.
