Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE  .
  2. Remove the window handle, if equipped. Refer to WINDOW HANDLE REPLACEMENT  .
  3. Remove the upper extension of the trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  4. Remove the manual lock lever from the trim panel using a flat-bladed tool.
  5. Remove the trim panel screws.
  6. Disconnect the electrical connectors.
  7. Remove the courtesy lamp, if equipped. Refer to COURTESY LAMP/REFLECTOR REPLACEMENT - DOOR .
  8. Remove the trim panel from the door. Carefully slide the trim panel up in order to release the retainers from the door.

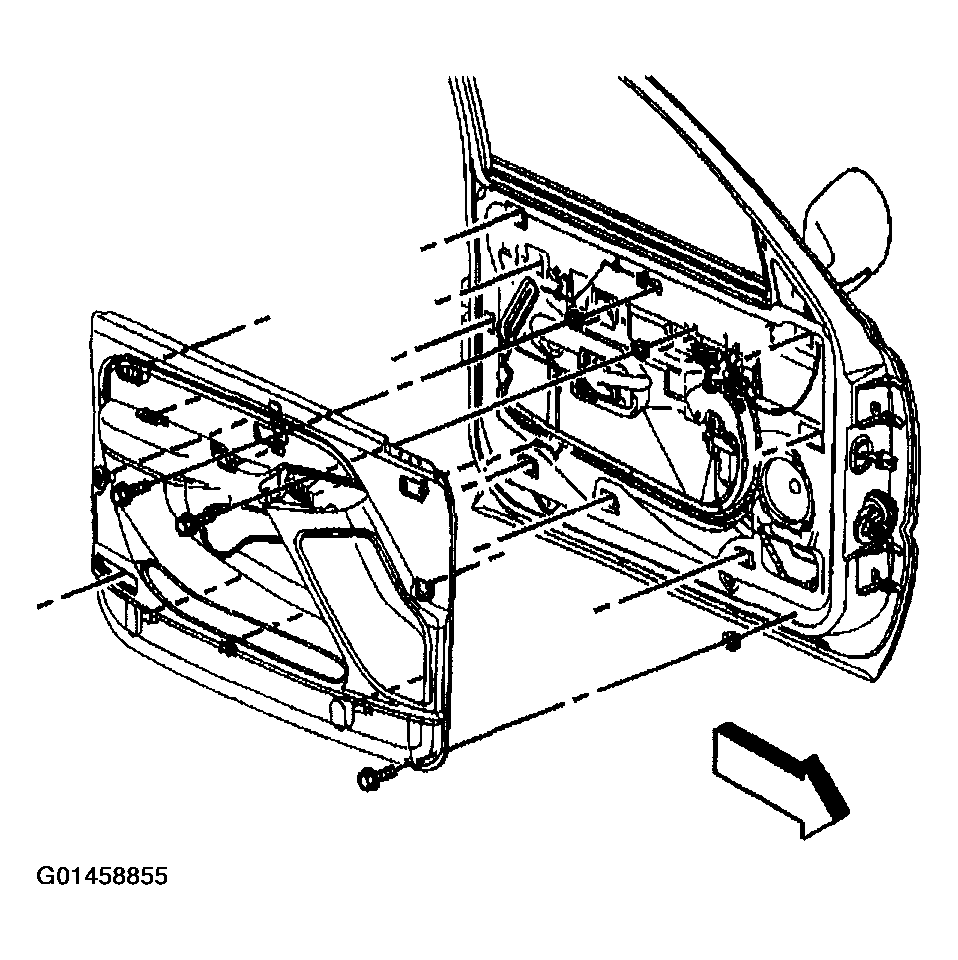

    9. Fig 1: Removing Trim Panel Side Front Door
    G01458855Courtesy of GENERAL MOTORS CORP.
  9. Remove the switch panel. Refer to SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - DRIVER  and SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - PASSENGER  .
