Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the electrical connectors.
  3. Remove the screw that retains the switch panel bezel (1) from the front door panel.

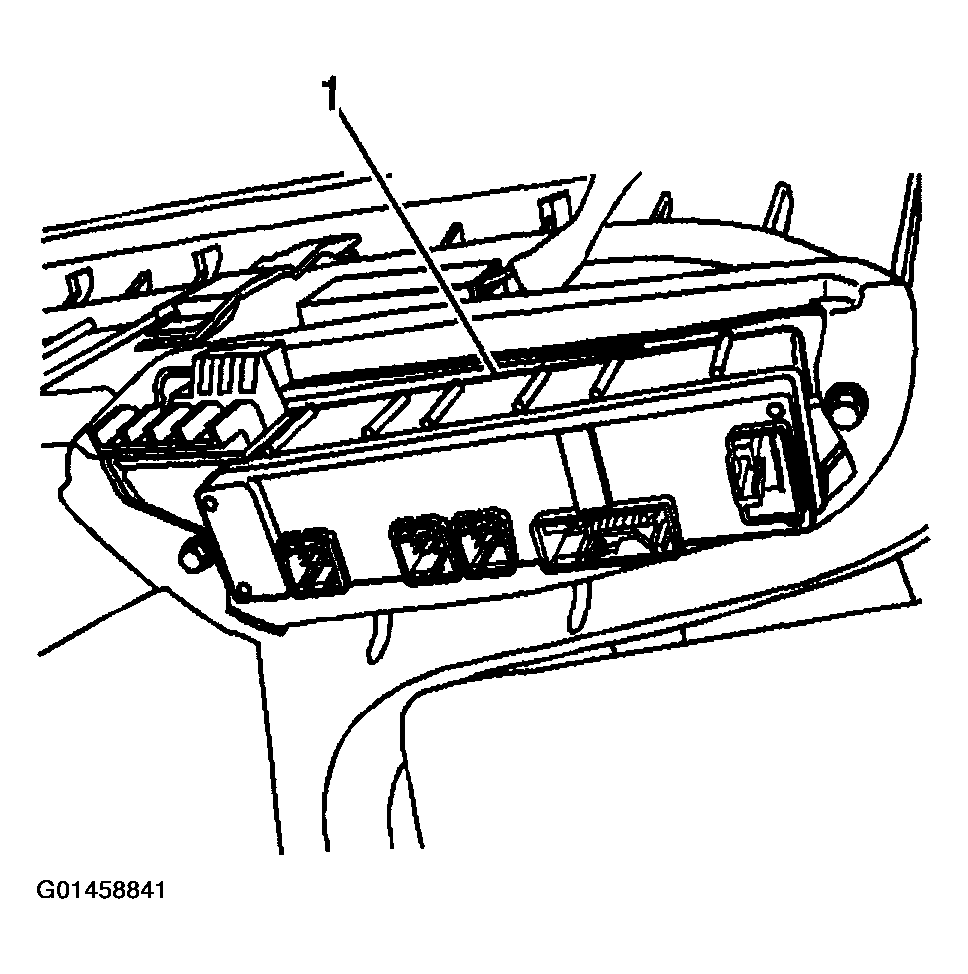

    4. Fig 1: Removing Front Door Switch Panel Bezel Screw
    G01458841Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch panel bezel from the door panel using a flat-bladed tool.
    5. Fig 2: Removing Switch Panel Bezel From Door Panel With Flat Tool.
    G01458842Courtesy of GENERAL MOTORS CORP.
  5. Using a wide plastic flat-bladed tool, release the retaining clips on both sides of the door module.
  6. Remove the door module from the switch panel bezel.

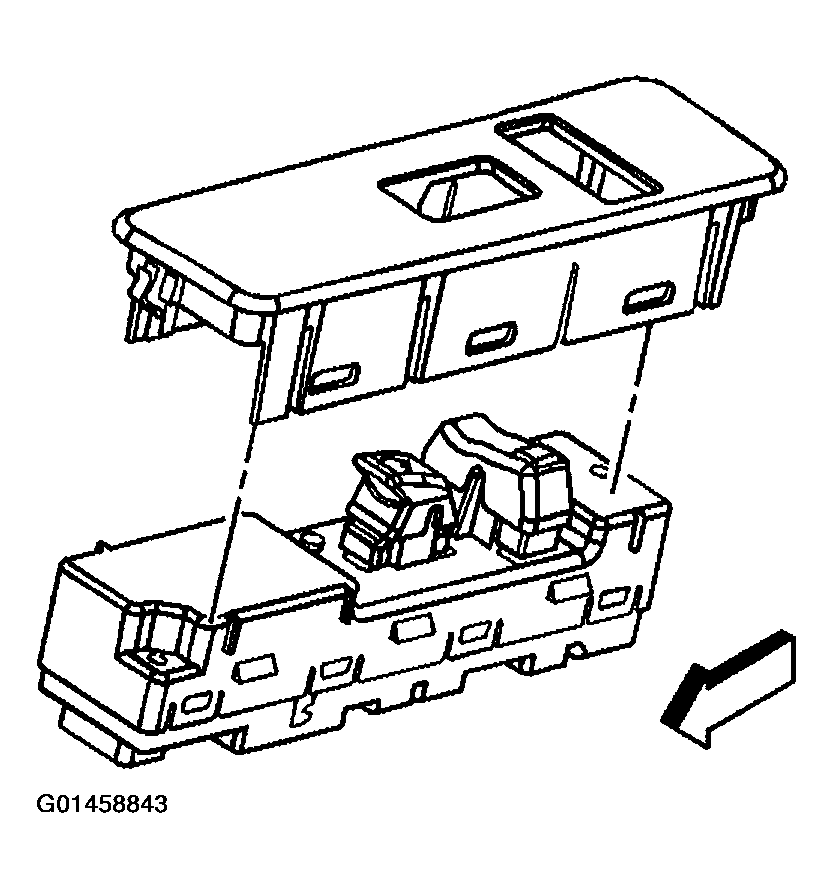

    7. Fig 3: Removing Door Module From Switch Panel
    G01458843Courtesy of GENERAL MOTORS CORP.
