Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: If both of the door striker bolts are removed at the same time, the striker backing plate will fall into the body. This will result in additional time to perform the repair.

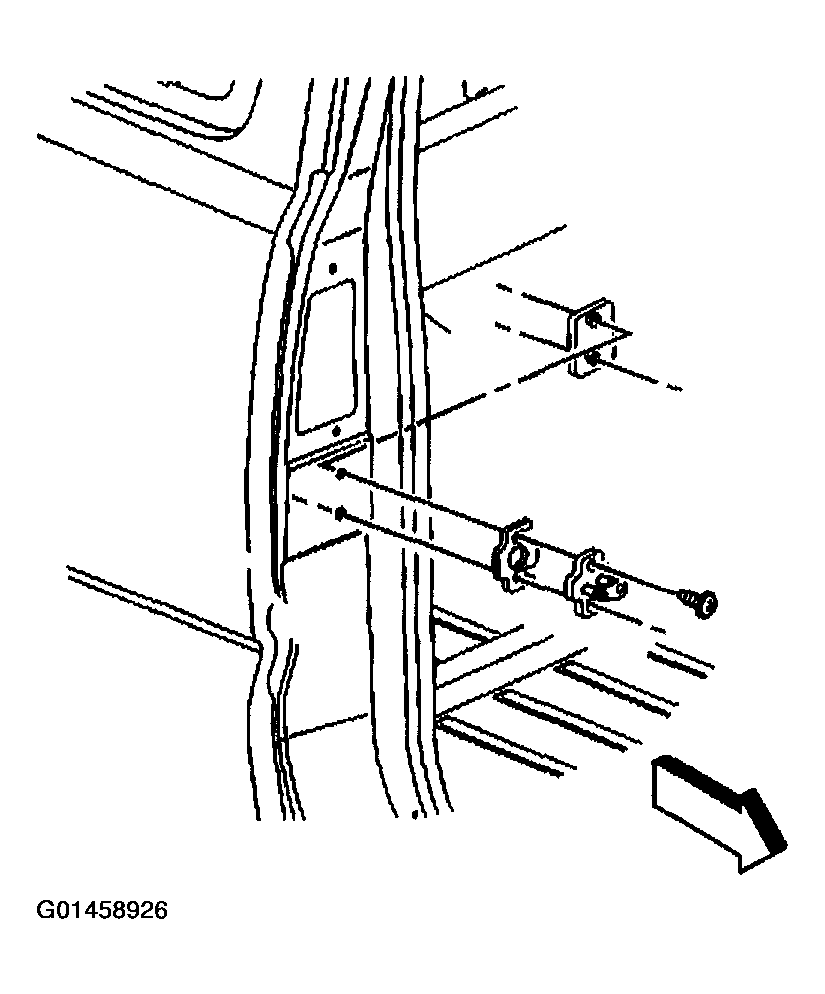

- Remove the lower striker bolt.
- Loosen the upper striker bolt enough in order to rotate the striker and the spacer (if equipped) away from the lower bolt hole.
- Install the lower striker bolt. Tighten the lower striker bolt sufficiently in order to hold the striker backing plate in place.
- Remove the upper striker bolt.
- Remove the spacer, if equipped.
- Remove the striker.
