Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front door trim panel upper extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION .

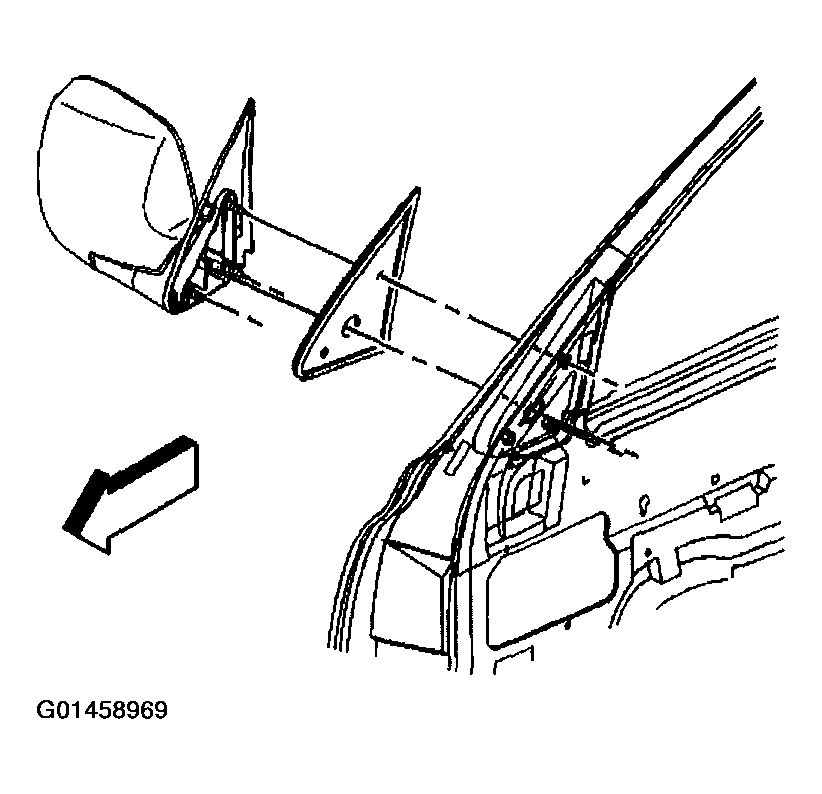

- Remove the nuts that retain the outside mirror to the door.
- Remove the outside mirror from the door.
