Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window completely.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the outside door handle. Refer to DOOR HANDLE REPLACEMENT - OUTSIDE  .
  5. Remove the clip that retains the lock cylinder lever to the lock cylinder.
  6. Remove the lock cylinder retainer. Remove the lock cylinder from the outside door handle.

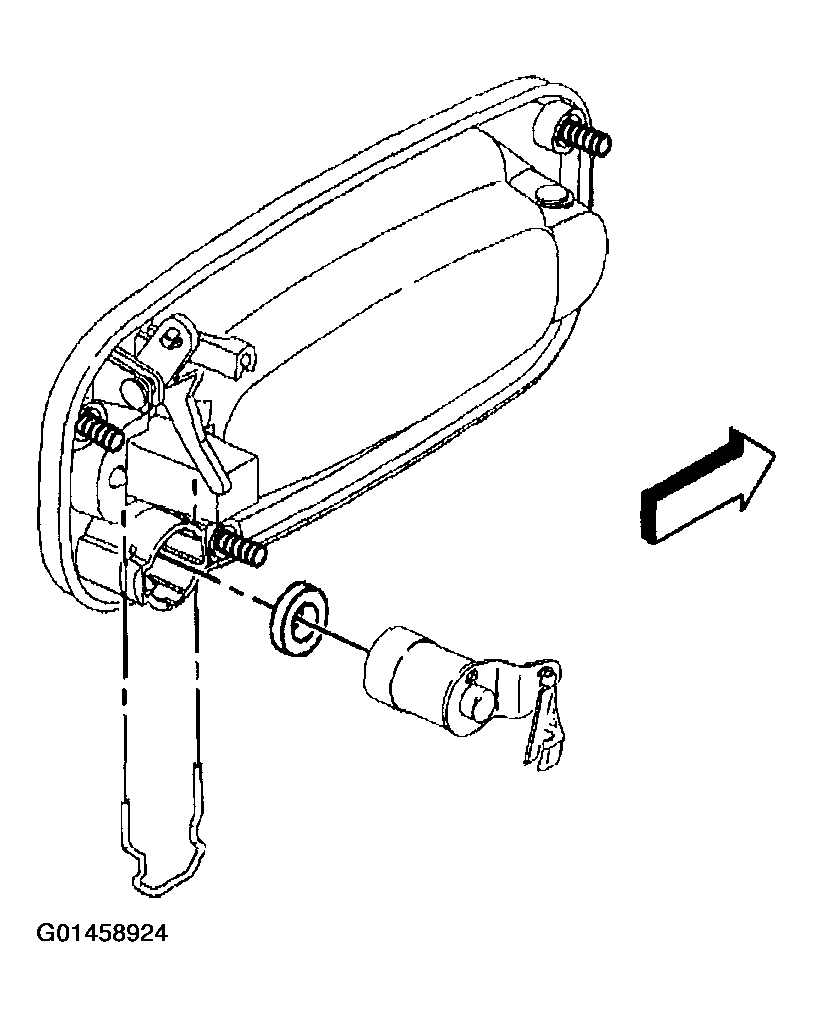

    7. Fig 1: Removing Procedure Lock Cylinder Door
    G01458924Courtesy of GENERAL MOTORS CORP.
