Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the mounting bolts from the inside door handle.

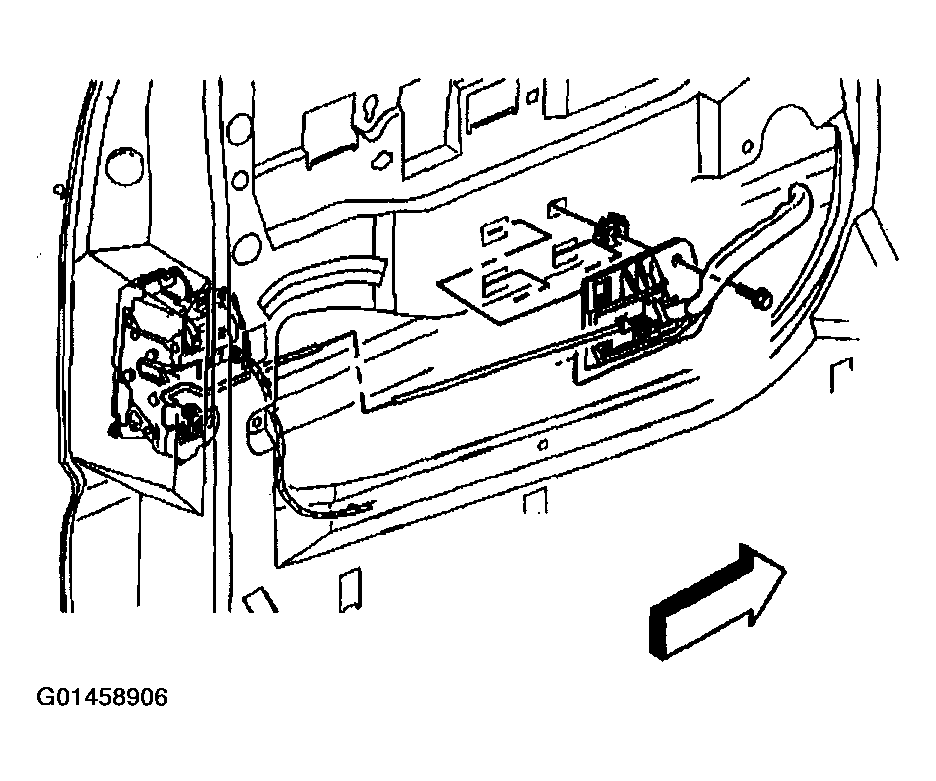

    3. Fig 1: Removing Door Handle Inside
    G01458906Courtesy of GENERAL MOTORS CORP.
  3. Slide the inside door handle forward in order to release the unit from the door.
  4. Disconnect the control rod from the inside door handle.
  5. Remove the door handle assembly from the door.

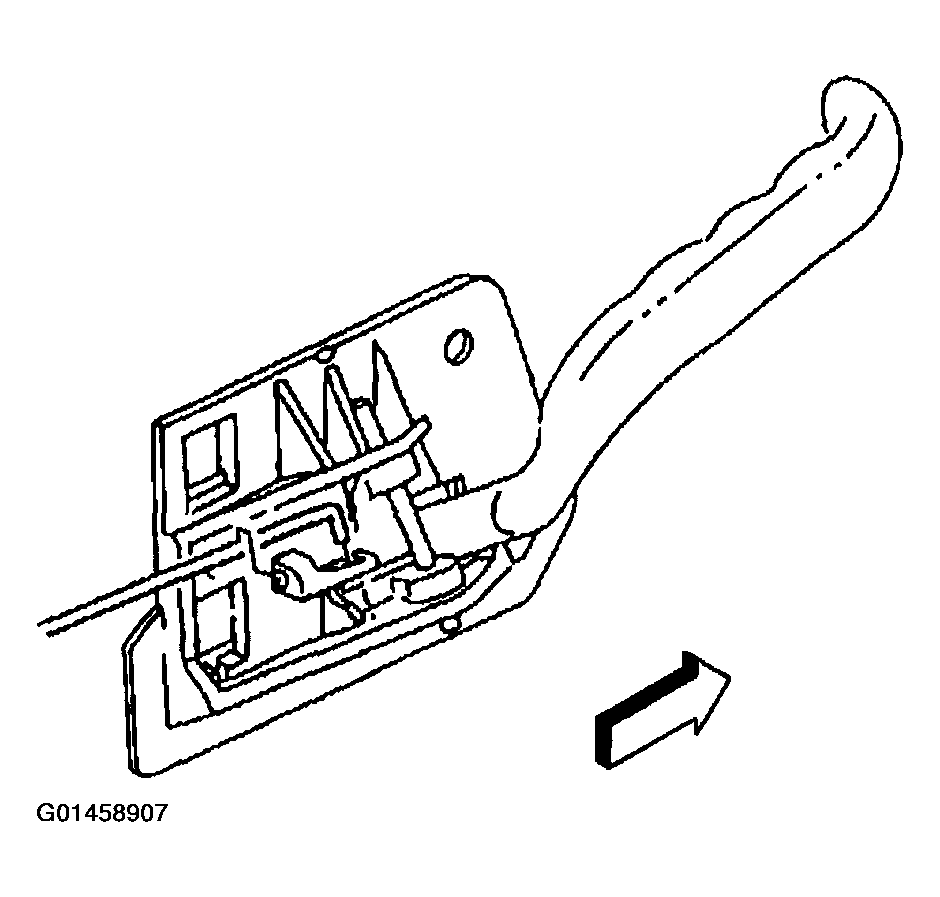

    6. Fig 2: Removing Door Handle Assembly Arm Door
    G01458907Courtesy of GENERAL MOTORS CORP.
