Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the body-side check strap bolt.
  5. Remove the check strap plug.
  6. Remove the door-side check strap nuts.

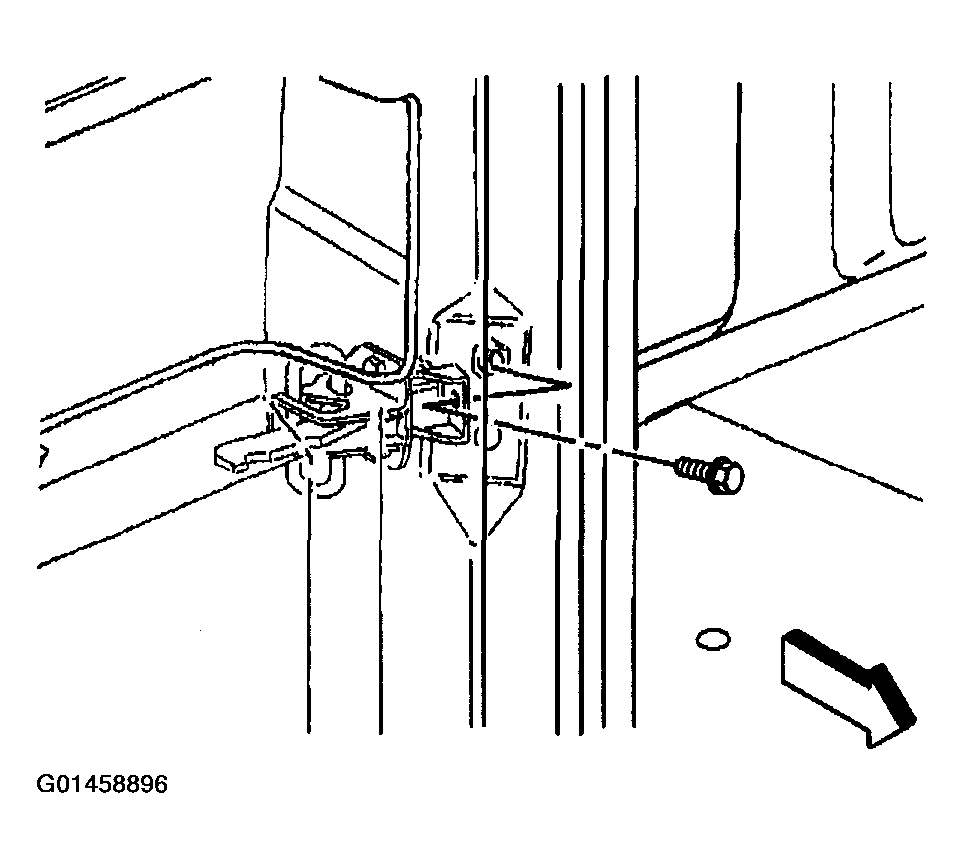

    7. Fig 1: Removing Procedure Door Check Link
    G01458896Courtesy of GENERAL MOTORS CORP.
  7. Pull the check strap from the inside of the door.
