Defogger schematics (Rear Window Defogger Control)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

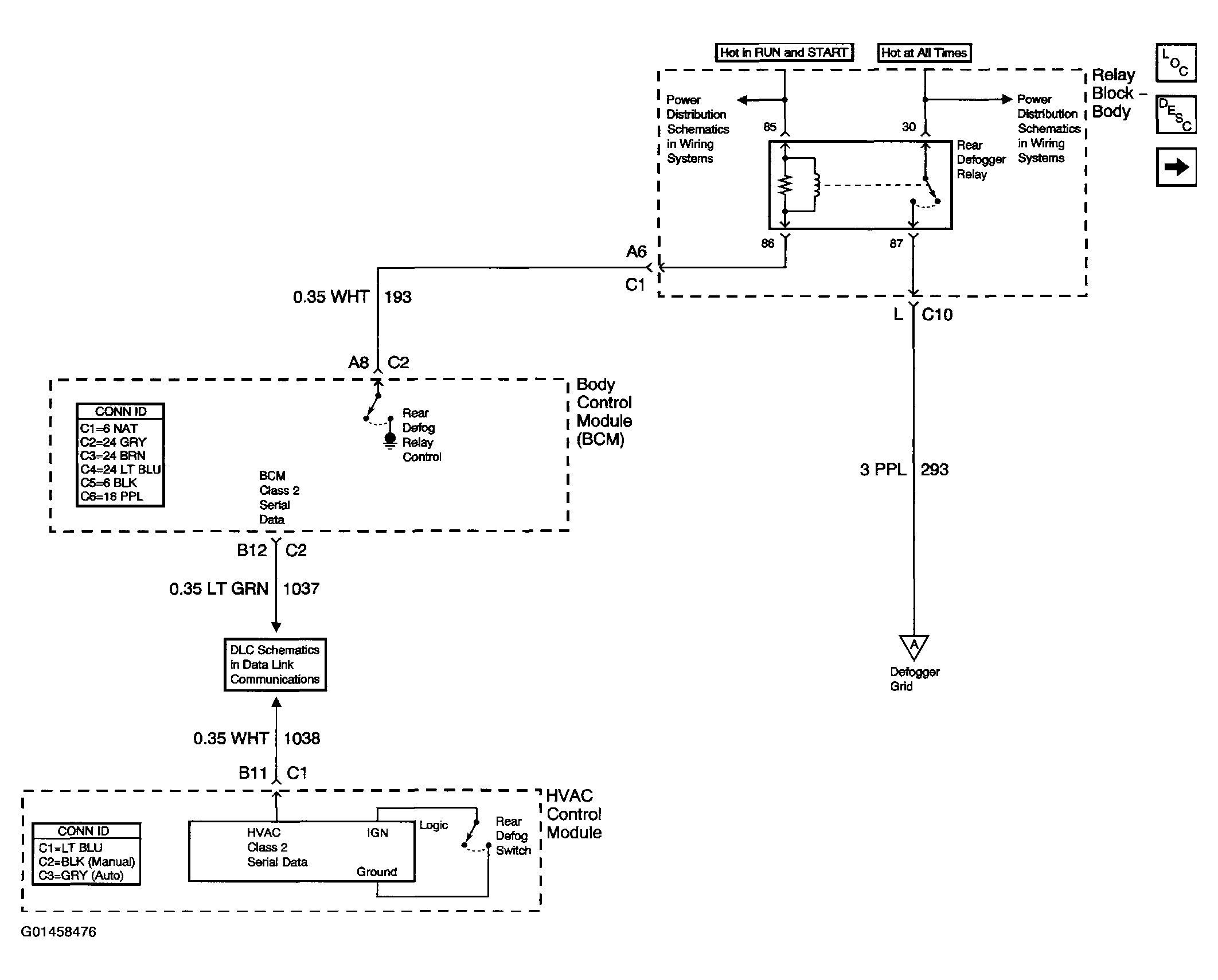

Fig 1: Defogger Schematics Diagram (Rear Window Defogger Control)

Courtesy of GENERAL MOTORS CORP.

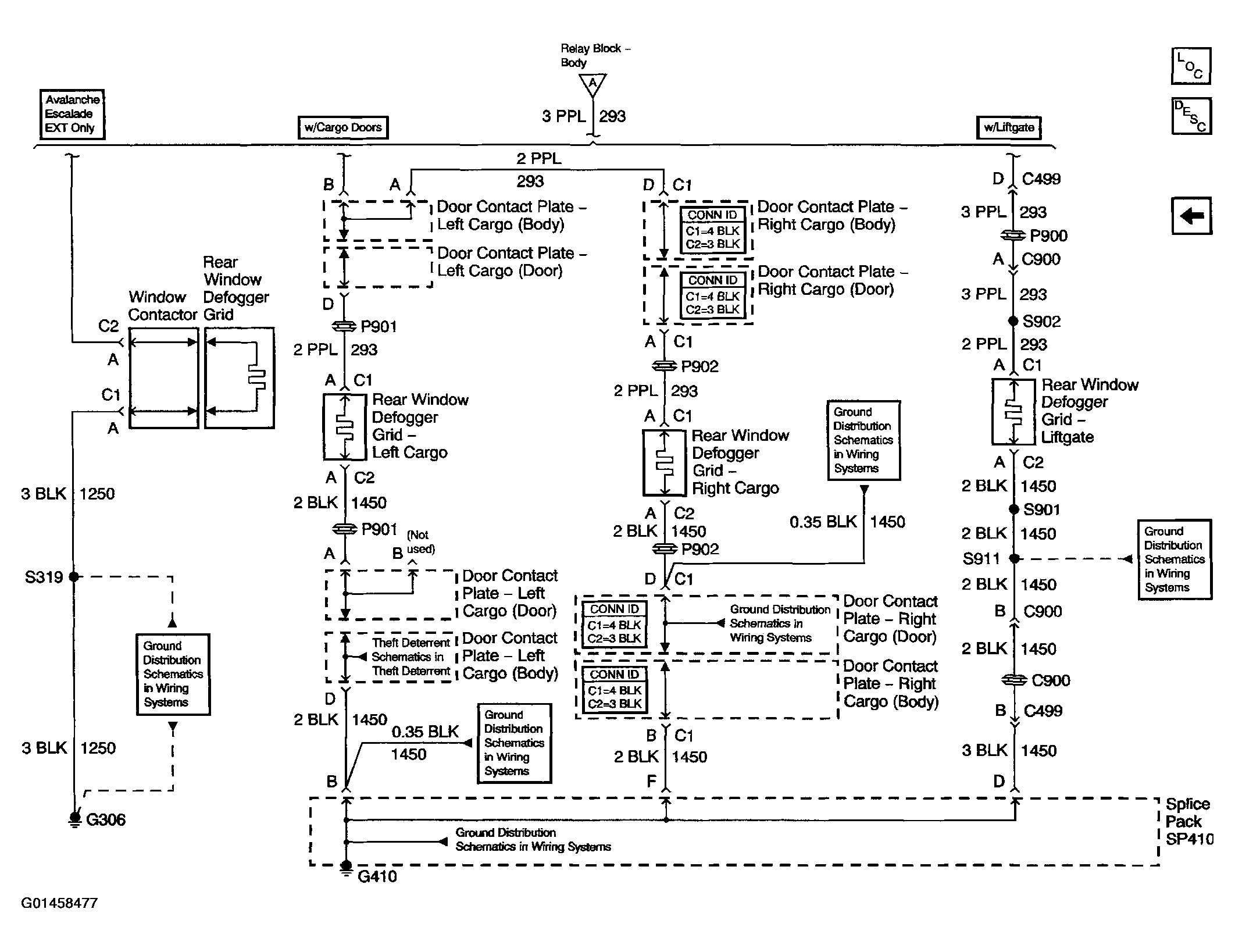

Fig 2: Defogger Schematics Diagram (Defogger Grid And Ground)

Courtesy of GENERAL MOTORS CORP.
