Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the front door sealing weatherstrip (1) to expose the windshield reveal molding screws.

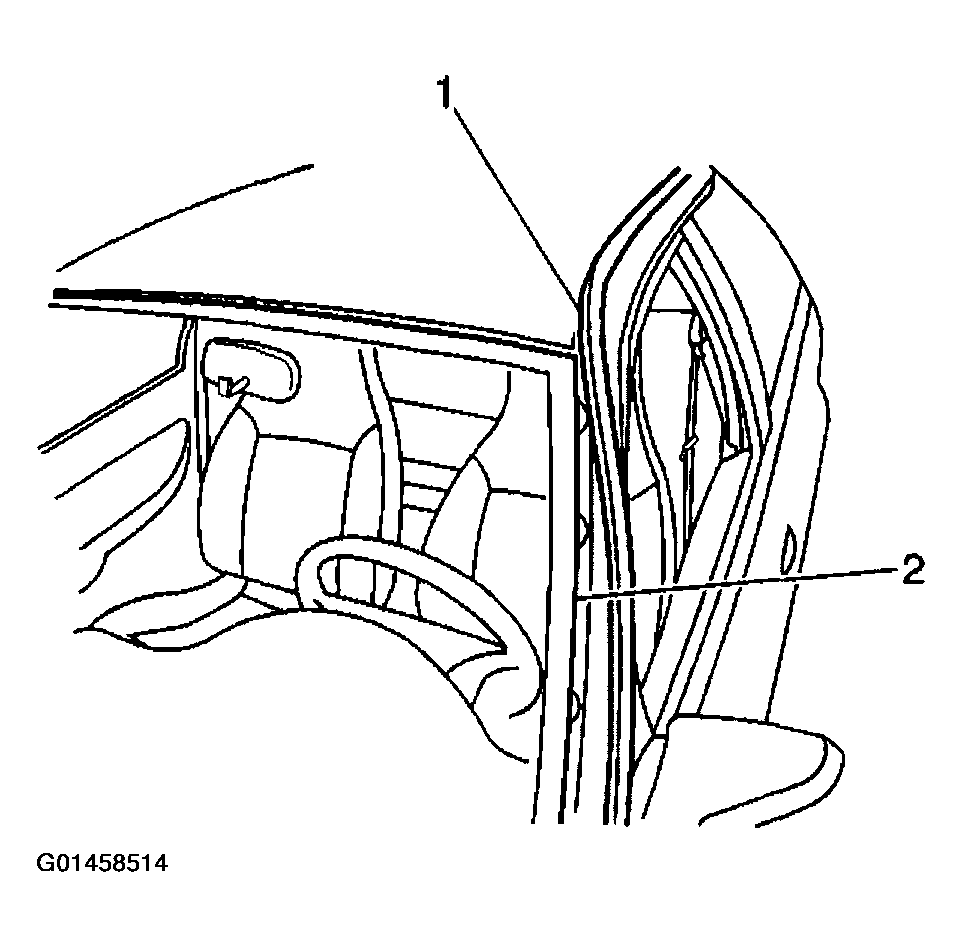

    Fig 1: Pulling Back Front Door Sealing Weatherstrip
    G01458514Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the windshield reveal molding.
  3. Remove the windshield reveal molding from the windshield pillar.

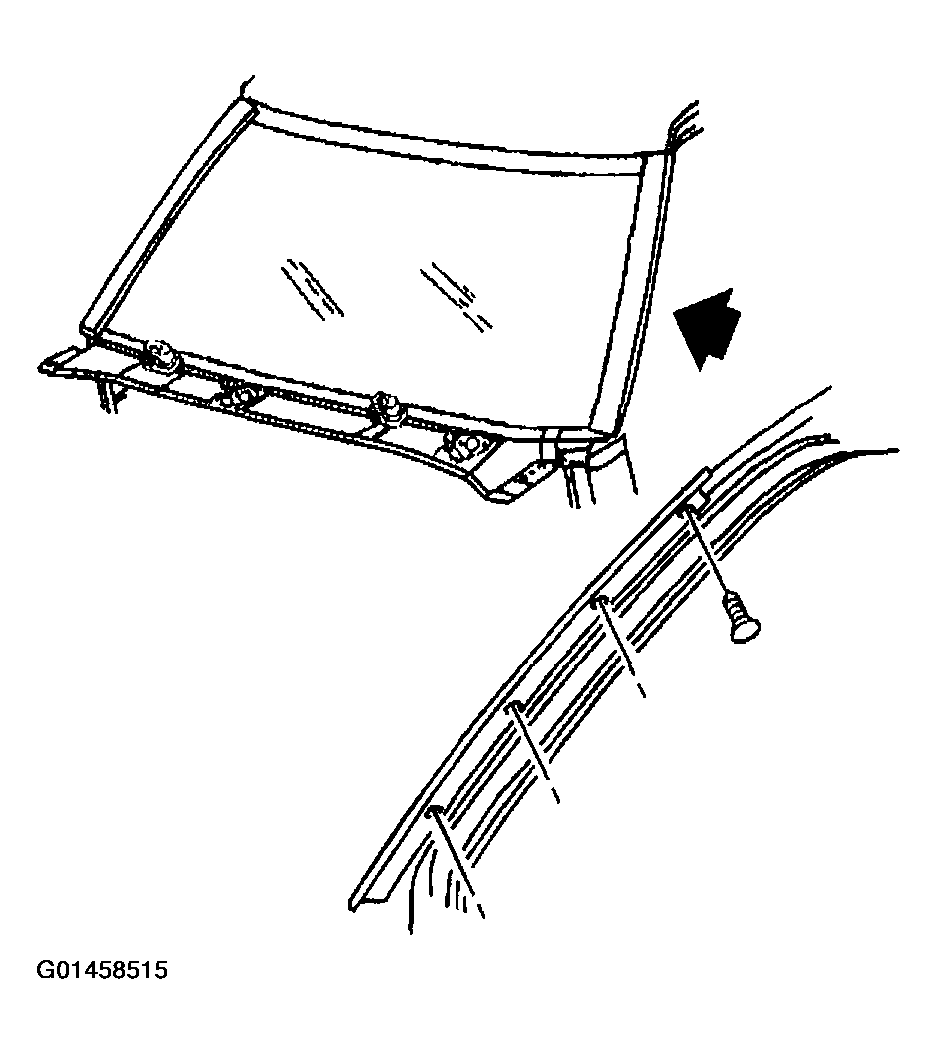

    Fig 2: Removing Screws From Windshield Reveal Molding
    G01458515Courtesy of GENERAL MOTORS CORP.
