Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the windshield reveal molding to the windshield pillar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the windshield reveal molding.

    Tighten

    1. Tighten the screws to the windshield reveal molding to 2 N-m (18 lb in).

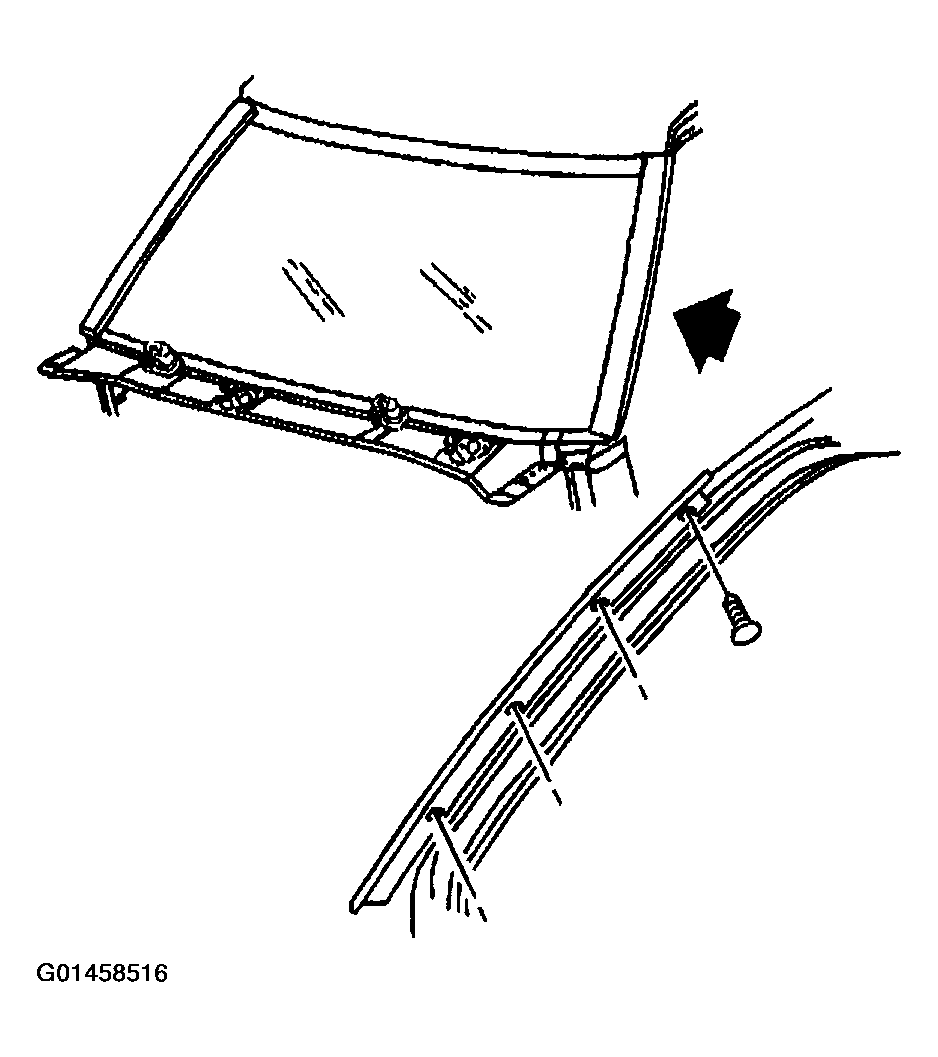

    Fig 1: Installing Screws To Windshield Reveal Molding
    G01458516Courtesy of GENERAL MOTORS CORP.
  3. Install the front door sealing weatherstrip (1) to the pinch-weld.
  4. Close the door.

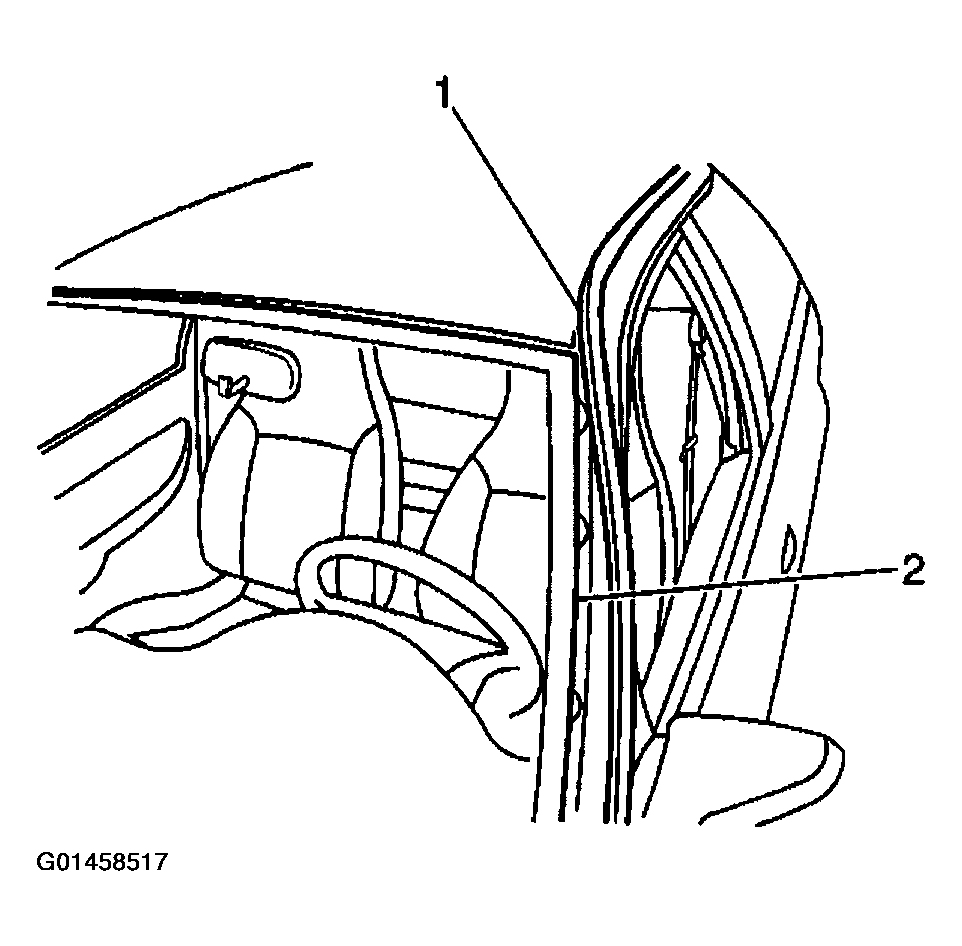

    Fig 2: Installing Front Door Sealing Weatherstrip To Pinch-Weld
    G01458517Courtesy of GENERAL MOTORS CORP.
