Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment cover assembly.
  2. Remove the cargo box bridge center panel. Refer to PANEL REPLACEMENT - CARGO BOX BRIDGE CENTER (AVALANCHE)  or PANEL REPLACEMENT - CARGO BOX BRIDGE CENTER (ESCALADE EXT)  .
  3. Remove the side inner panel. Refer to PANEL REPLACEMENT - CARGO BOX BRIDGE SIDE INNER (AVALANCHE/EXT)  .
  4. Remove the side outer panel by pulling up in order to release the panel from the fasteners.

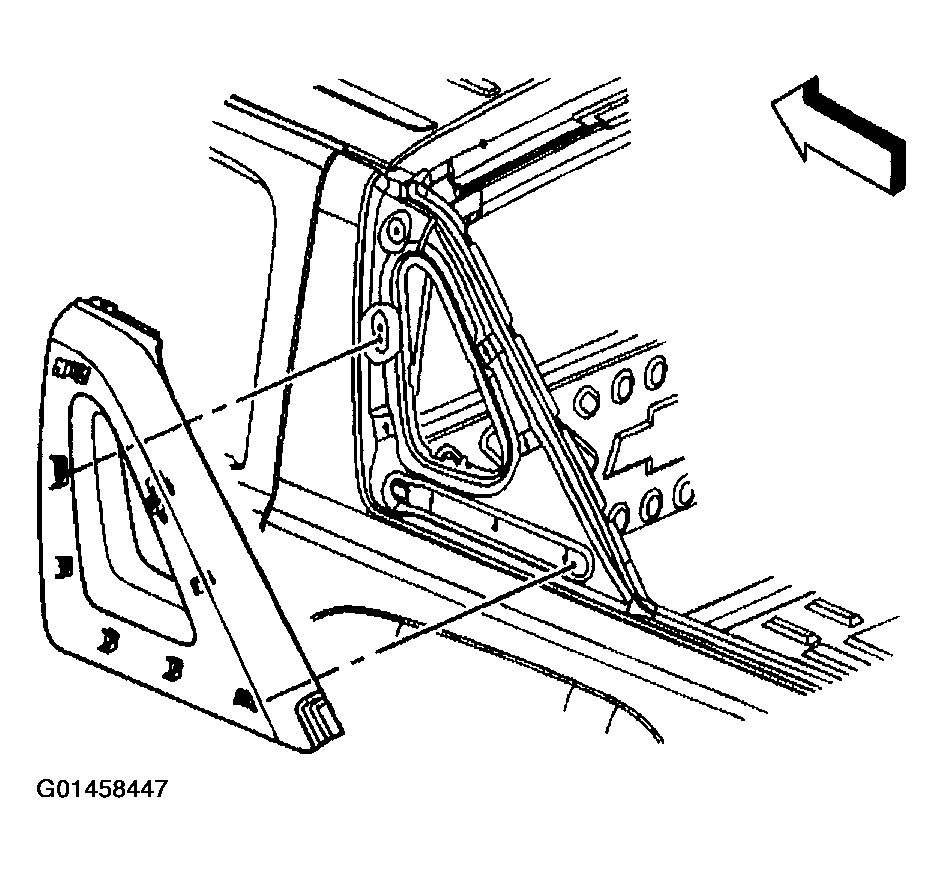

    5. Fig 1: Removing Cargo Box Bridge Side Outer Panel (Avalanche)
    G01458447Courtesy of GENERAL MOTORS CORP.
