Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side outer panel to the body side outer panel fasteners.

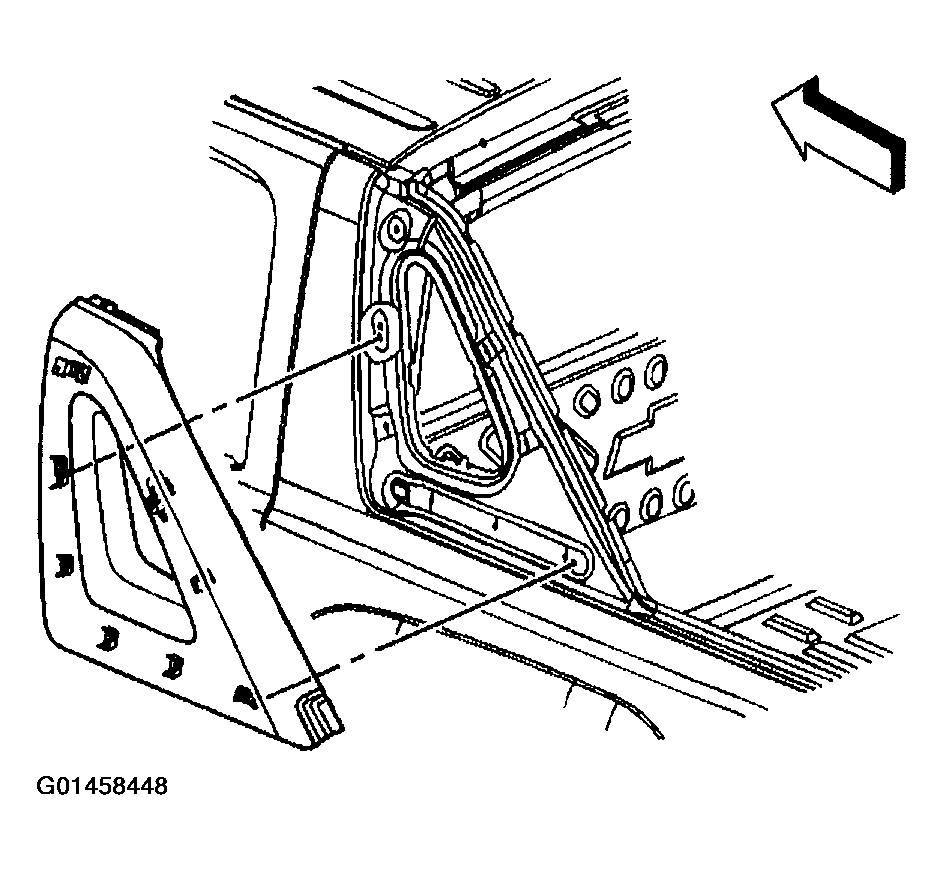

    2. Fig 1: Installing Cargo Box Bridge Side Outer Panel (Avalanche)
    G01458448Courtesy of GENERAL MOTORS CORP.
  2. Install the side inner panel. Refer to PANEL REPLACEMENT - CARGO BOX BRIDGE SIDE INNER (AVALANCHE/EXT)  .
  3. Install the cargo box bridge center panel. Refer to PANEL REPLACEMENT - CARGO BOX BRIDGE CENTER (AVALANCHE)  or PANEL REPLACEMENT - CARGO BOX BRIDGE CENTER (ESCALADE EXT)  .
  4. Install the rear compartment cover assembly.
