Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is in the OFF position.
  2. Remove the rear compartment cover assembly.
  3. Remove the cargo box bridge center screws (1,2).

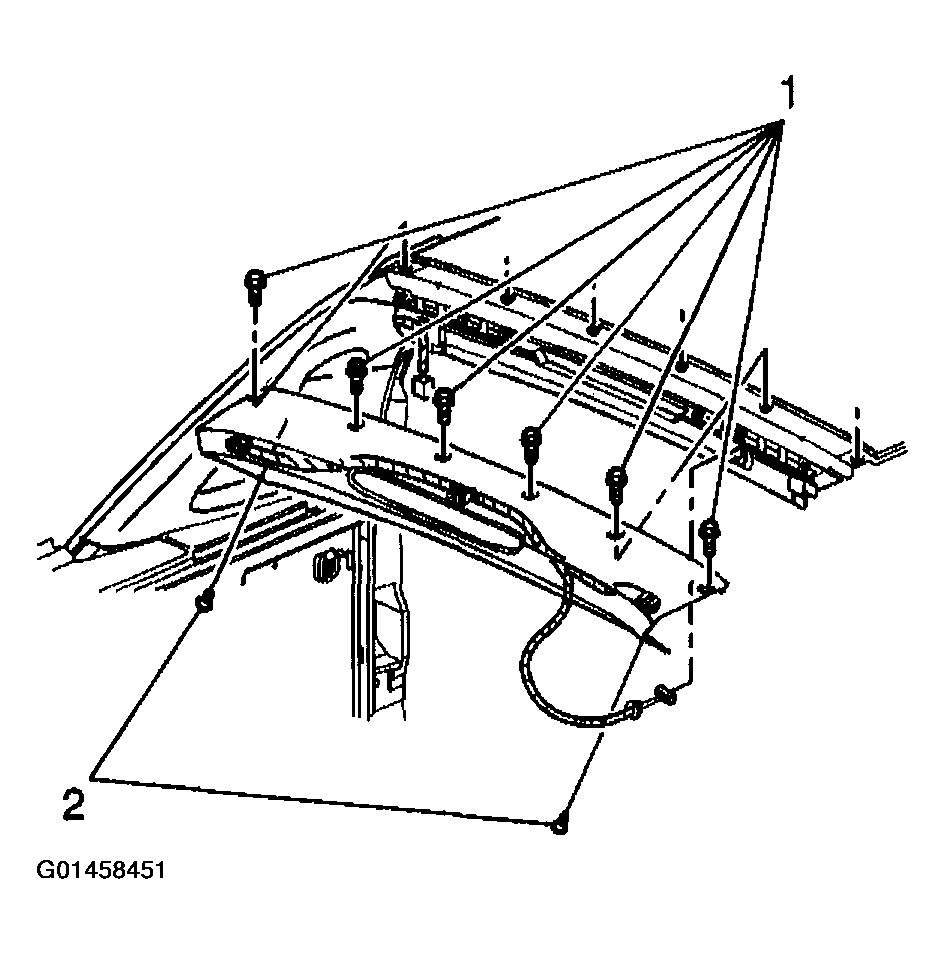

    4. Fig 1: Removing Cargo Box Bridge Side Center Panel (Avalanche)
    G01458451Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector.
  5. Remove the panel assembly from the vehicle.
  6. Remove the high mount stop lamp from the cargo bridge center. Refer to HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .
