Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the molding. Ensure that the inner side lip of the molding is seated along the length of the retainer.

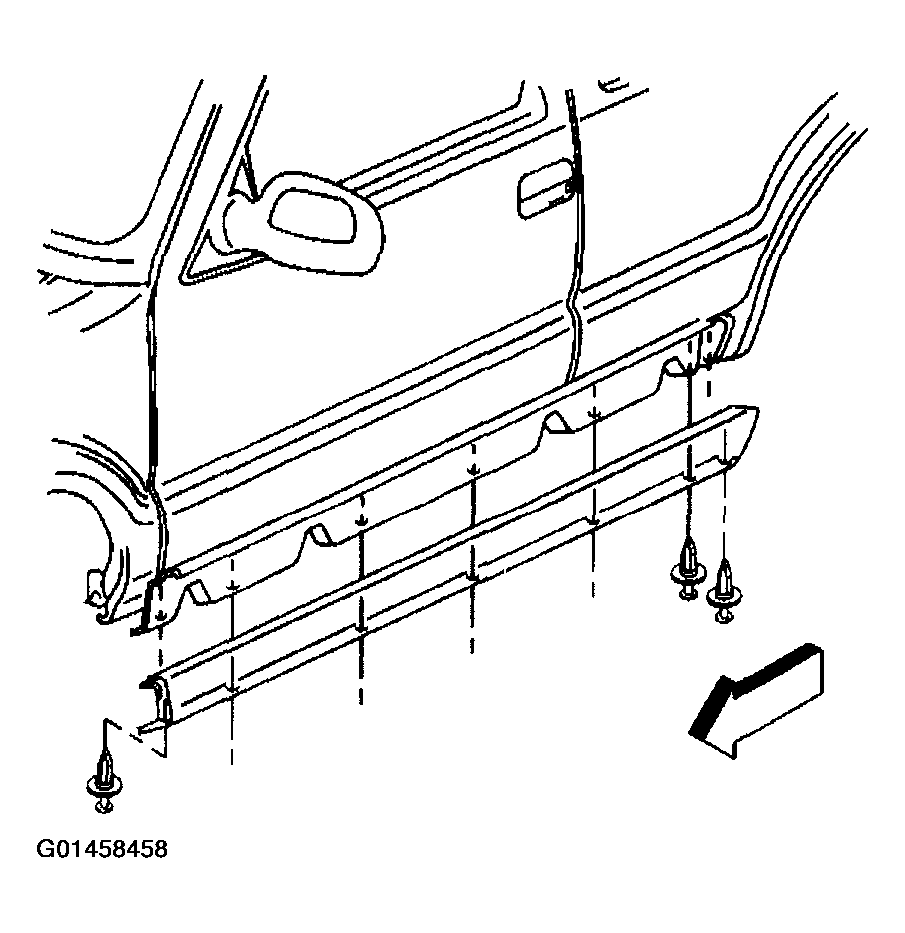

    2. Fig 1: Installing Rocker Panel Molding (Z-71)
    G01458458Courtesy of GENERAL MOTORS CORP.
  2. Install the push-pins.
