Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rocker panel molding (3) to the vehicle.

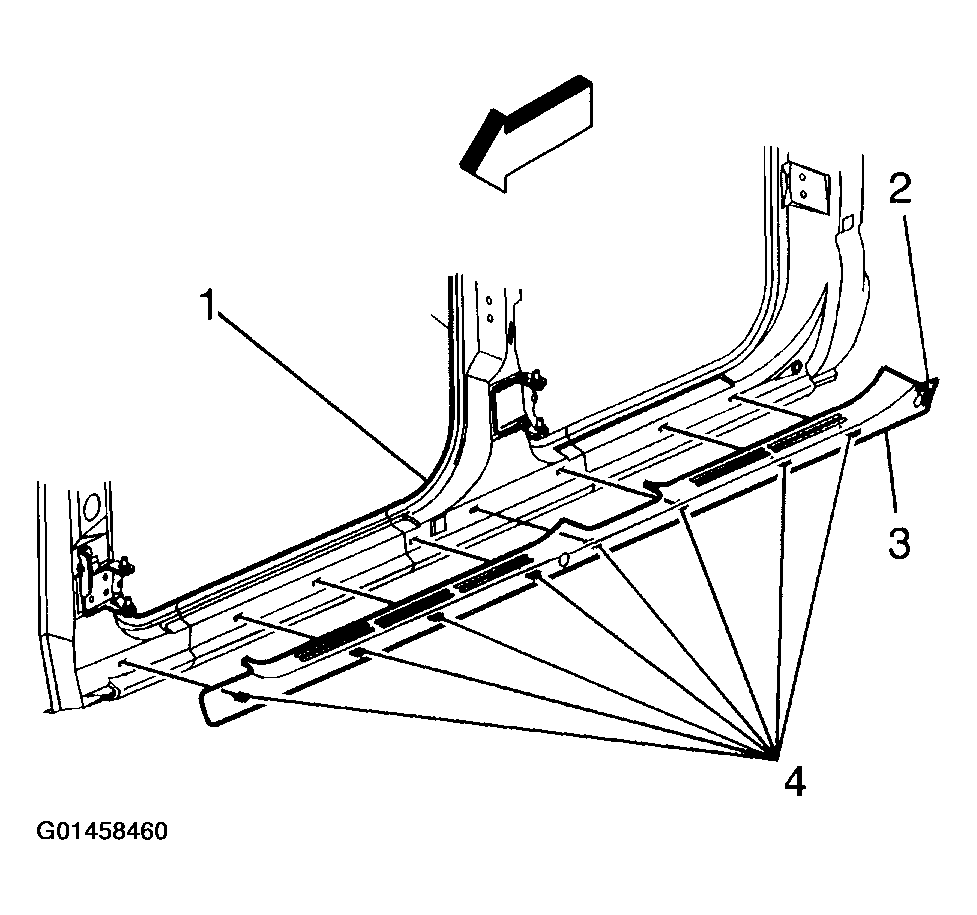

    2. Fig 1: Installing Rocker Panel Molding (Utility)
    G01458460Courtesy of GENERAL MOTORS CORP.
  2. Align the spring clips (4) to the vehicle.
  3. Press at sections (4) to secure the rocker panel molding to the vehicle.
  4. Remove the tape backing (2) and press firmly on the rocker panel molding.
  5. Install the rear door. Refer to REAR DOOR REMOVAL/INSTALLATION in Doors.
